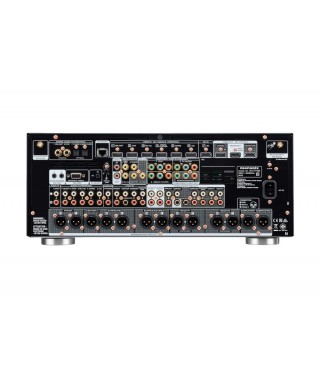

Marantz AV7706 11.2 Channel AV Preamplifier

Marantz AV7706 11.2 Channel 8K UHD Home Theatre Pre-Amplifier offers uncompromised surround sound and unlocks pure cinema experience at your home. The AV7705 supports 8K pass-through, latest HDMI technology, and eARC which supports Atmos and DTS:X from TV sources and online video streaming platforms.

Either you are enjoying to movie or music, you will be amazed by the precision, wide dynamic range and high fidelity, thanks to reference-class 32-bit AKM DAC on all channels.

Room calibration and optimisation are equally important while setting up a home theatre, Audyssey MultEQ XT32 not only just does that but steps forward with additional psychoacoustic algorithms that masterfully delivers full-range balance and deep bass without disturbing other room of your home, it smooths disruptive jumps in volume, and much more.

Noteworthy mentions include support for HDR contents, HDR10, HDR10+, HLG, Dolby Vision; lag-free gaming with 4K-120H pass-through, Variable Refresh Rate, Quick Frame Transport and Audio Low Latency Mode; Voice Assistant supports, Alexa, Google Assistant and Siri; Multi-Room Audio with AirPlay 2, HEOS Built-in, Multi-Source, Multi-Room and Phono Stage with Marantz HDAM Technology.

Features

8K/60Hz pass-through

4K/120Hz pass-through

Enhanced Audio Return Channel (eARC)

32-bit DAC on All Channel

IMAX Enhanced

Audio-3D

Dolby Atmos and DTS:X

Dolby Atmos Height Virtualisation & DTS Virtual:X

Audyssey MultEQ XT32 Room Calibration & Optimisation Suit

Supports: HDR10, HDR10+, HLG, Dolby Vision, 4:4:4 Colour Resolution & BT.2020

Next Level Gaming: Variable Refresh Rate (VRR), Quick Frame Transport(QFT), Auto Low Latency Mode (ALLM)

HEOS Built-in Multi-Room Audio Streaming

Roon Ready

AirPlay 2

Bluetooth Headphone Audio Transmission

Dual-Band Wi-Fi

High-Res Audio: DSD, FLAC, WAV, ALAC

Supports: Spotify, TIDAL, Deezer, TuneIn

Phono Stage

Dual Subwoofer Outputs

11.2 Channel XLR Outputs

11.2 Channel RCA Outputs

Multi-Room Audio: Zone2 & Zone3

Specifications

Brand Marantz

Color Black

Smart Voice Assistant Works with Alexa, Works with Google Assistant, Works with Siri

AirPlay AirPlay 2

App Remote Control Yes

Bluetooth® Technology Yes

On-Screen Display Yes

Supported HDR Formats Dolby® Vision, HDR10+, HLG (Hybrid Low-Gamma)

HDMI Standby Pass-through Yes

Room Calibration & Speaker Optimisation Yes

Online Audio Services Support Spotify Connect, TIDAL, Deezer, Amazon Music, TuneIn

Supported File Formats MP3 / WMA / AAC

Hi-Res Audio Support FLAC (24-bit/192 kHz), ALAC (24-bit/192 kHz), WAV (24-bit/192 kHz), DSD64 (2.822 MHz), DSD128 (5.6448 MHz)

Warranty Australian Manufacturer Warranty

Surround Sound Processing

IMAX® Enhanced Yes

Dolby® Sound Technology Dolby® Atmos™, Dolby® Atmos Height Virtualisation, Dolby® TrueHD, Dolby® Surround

DTS™ Technology DTS:X™, DTS Virtual:X™, DTS Neural:X™, DTS-HD™ Master Audio

Auro-3D Yes

Multi-room Audio-Video

Multi-Room Audio-Video Output Preamplifier Zone 2 Audio, Preamplifier Zone 3 Audio, HDMI Zone 2

Inputs and Outputs

Subwoofer Outputs 2

HDMI Inputs 8

HDMI Monitor Outputs 3

Optical Digital Inputs 2

Coaxial Digital Inputs 2

Composite Video Input 4

Composite Video Output 2

Component Video Inputs 3

Component Video Monitor Outputs 1

Analog Inputs 7

USB A Ports 1

LAN Yes

Wireless LAN (Wi-Fi) Yes

Phono Input 1

12V Trigger 2

RS-232 Port Yes

Multi-channel Preamp Output Yes

Multi-Channel Analog Input Yes

Dimension

Product Dimension (H×W×D) 185 × 440 × 411 mm (with Antenna Horizontal)

Product Weight 10.4 Kg
