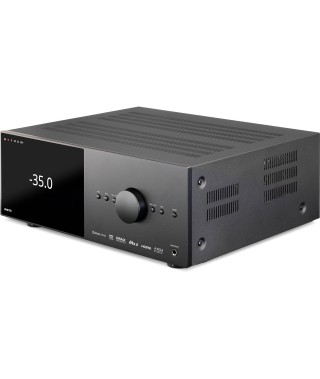

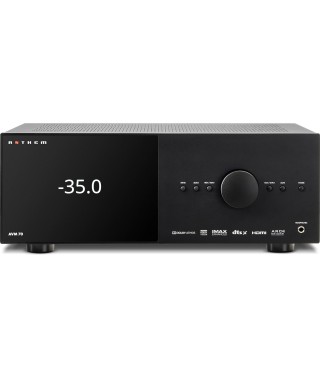

Anthem AVM 70 8K AV Preamplifier Processor

Anthem AVM 70 8K 15.2 A/V Pre-Amplifier/ Processor with Dolby Atmos, DTS:X and IMAX Enhanced

Advanced 8K HDMI Platform

Feel the power of every frame with the AVM 70 A/V Processor and its advanced 8K HDMI 2.1 Platform with HDCP 2.3. Showcasing 7 dedicated HDMI 2.1 inputs supporting 8K/60Hz or 4K/120Hz pass-through and 3 HDMI outputs with eARC, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. The latest HDMI technology, allows you to take your home entertainment to the next level with HDR10+, ALLM, VRR, QMS and QFT support.

Experience Gaming Like Never Before

Supporting the next generation of A/V formats, the AVM 70 A/V Processor unlocks the potential of the latest generation of consoles. Experience every sight, every sound, as the AVM 70 immerses you with stunning picture up to 8K/60Hz (4K/120Hz), and the latest generation audio formats in up to 17-channels (15.2) AVM 70 A/V Processor defines state-of-the-art gaming performance. Advanced processing precisely positions every sound with breathtaking realism and clarity.

Flexible Streaming

The AVM 70 A/V Processor includes a robust set of streaming options that can pull your music in from local storage or from the internet. Thanks to Anthem’s high-speed processing and premium digital-to-analog conversion using high-end DACs, sound quality can be every bit as good as dropping a CD into a dedicated disc player. In some cases, high-resolution streams can sound even better than CDs, approaching the quality of SACD, DVD-A, and Blu-ray audio.

Web User Interface

Using a phone, tablet or laptop, owners can easily access the Anthem Web User Interface to make changes on the fly to any function or setting. Power the main or second zone on and off, adjust volume, change audio modes or tweak channel trims for a perfect surround sound experience. Web UI can also be used to calibrate speaker delays and levels and configure network settings/control options. Source devices can be renamed, simplifying setup by enabling the elimination of unused inputs.

The Power to Engineer Your Room with Anthem Room Correction (ARC)

At Anthem, we like to take things one step further. Rather than just designing a processor, we want to engineer your room. With the most advanced implementation of our award-winning ARC Genesis room correction, professional calibration of your system can be achieved with the click of a button while still offering advanced functionality to refine the sound to your personal taste.

Sound in Disorder

Surfaces such as windows, furnishings, and the geometry of the walls, floor, and ceiling add unwanted resonance and coloration, making the bass either boomy or less punchy, voices less natural, and the dialogue-less intelligible.

Sound in Order

Anthem Room Correction measures each speaker’s output relative to the listening area, then through a series of calculations, adjusts its output. Not only does ARC correct peaks and dips in a speaker’s frequency response, but it also preserves the beneficial acoustic attributes of a room.

Anthem Remote App Early Access / Public Beta

Gain unprecedented command over your network-enabled Anthem A/V Receiver, Processor or Pre-amplifier. The Anthem Remote App uses a Wi-Fi connection to simplify the configuration of supported Anthem devices. App-based controls include volume level, muting, input selection, power, listening modes, bass, treble, level trims, menu navigation, and Anthem Room Correction (ARC) control.

Smart Engineering

At Anthem, we have a straightforward goal – to design, engineer and manufacture audio/video products that deliver performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability

Integration Ready

At Anthem, we pride ourselves on playing nice with others, no matter the ask. As a result, we’ve made the AVM 70 A/V Processor the ultimate nerve center for any home theatre or media room by treating ease of integration as a top priority. The AVM 70 A/V Processor features RS232 Serial and IP control capabilities for easy customization and compatibility with common third-party integration solutions.

Highlight Features :

New & Improved Electronics Platform, up to 15.2 channels, now with HDMI 2.1 & HDCP 2.3 (8K Ready)

Platform Agnostic Streaming with AirPlay2, Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect and Roon (coming soon!)

Reliable Networking Platform with web-based setup and over-the-air updates

Next-Generation DSP Platform featuring the award-winning Anthem Room Correction (ARC Genesis) software

Modernized Design with high-resolution front panel

Features

AVM 70 15.2 Channel A/V Preamplifier / Processor:

Toroidal Power Supply

32-Bit/768 kHz DAC

Two Independent Subwoofer Outputs

Wi-Fi / Ethernet Enabled

IP and Serial Control

Dolby Atmos

DTS:X, DTS Virtual:X

HDMI eARC

Apple AirPlay 2

Google Chromecast (Audio)

Bluetooth v4.2

Spotify Connect

HDMI & Video:

Dolby Vision

IMAX Enhanced

HDMI 2.1 & HDCP 2.3

HDMI eARC

4:4:4 Subsampling @ 8K/60 Hz (18.2 Gbps)

High Dynamic Range (HDR10+)

Variable Refresh Rate (VRR)

Auto Low Latency Mode (ALLM)

Quick Frame Transport

Hybrid Log Gamma (HLG)

BT.2020 Color Gamut

8K/60 Hz / 4K/120 Hz Pass-Through

Zone 2 HDMI Output

Decoding:

Dolby Atmos

Dolby HD

DTS:X

DTS:HD Master Audio

Custom Installation:

IP Control

RS-232 Control

IR Input

Three 12V Trigger Outputs

Pre-made Control Drivers

Save and Load Settings

Import and Export Settings

Rackmount kit (sold separately)

Streaming:

Apple Airplay

Apple Airplay 2

Google Chromecast Audio

Bluetooth

Spotify Connect (coming soon)

Roon (coming soon)

Listening Modes:

Anthem Logic

Dolby Surround

DTS Neural:X

DTS Virtual:X

Stereo

All Channel Stereo

Mono

All Channel Mono

Additional Features:

Anthem Web User Interface

Toroidal Transformer

30 Input Configurations

Input trim adjustments

Power-on Input Assignment

Auto Power Off

Eco Mode (standby)

Over-the-air Network updates

USB updates

Beta updates (over-the-air)

Backlit Remote Control

Specifications

Preamplifier Channels (Measured at XLR Output)

Maximum Output (<0.1% THD) -  10.7 VRMS, Subwoofer 11 VRMS

Frequency Response -  20 Hz - 35 kHz (+/-0.2dB)

Frequency Response, Analog-Direct -  20 Hz - 80 kHz (+0, -2 dB)

THD+N (4 Vrms output) -   -100 dB

S/N Ratio (4 Vrms output, IEC-A filter) -  110 dB

XLR Configuration -  Pin 1: Ground, Pin 2: Positive, Pin 3: Negative

HDMI features:

HDMI 2.1 audio/video switching: 7 in, 3 out

all HDMI connections support 4K/120Hz and 8K/60Hz

HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs

HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content

supports HDR10, Dolby Vision™, and HLG (Hybrid Log Gamma)

supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)

eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

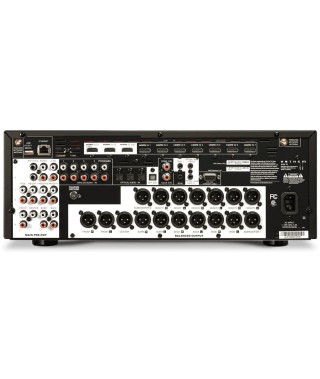

Other connections:

digital audio inputs: 3 Toslink optical, 2 coaxial

4 analog stereo RCA audio inputs

MM (moving magnet) phono input for connecting a turntable

15.2-channel balanced XLR and unbalanced RCA outputs for connection to external power amps

includes 2 discrete subwoofer outputs that can be calibrated independently

full-sized front-panel headphone jack

Power Consumption

Typical Load - 60 W

Standby - 0.3 W

Standby IP Control Enabled - 1.8 W

Standby HDMI Bypass Enabled - 4.9 W

Dimensions

Height (without feet) - 6" (15.24 cm)

Height with Rackmount Kit - 4U

Width - 17" (43.18 cm)

Depth (including wifi and not power cord) - 14-1/2" (36.4 cm)

Weight - 22.1 lbs, 10.1 Kg
