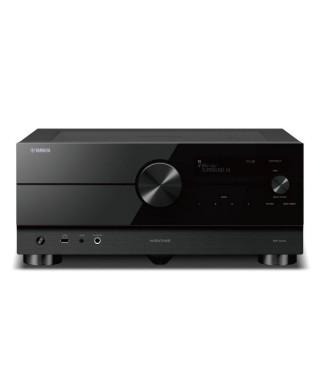

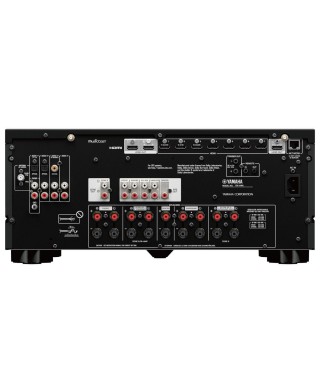

Yamaha RX-A4A 7.2 Channel AV Receiver

Feel your walls melt away. The A4A delivers realistic sound and video that transports you out of your home and into your favourite movie. Whether you’re watching, listening or gaming, you’ll feel completely immersed.

The Benchmark for AV Receivers

AVENTAGE AV receivers are the reference standard to which all others are compared. Passionate engineering and meticulous attention to detail produce the Yamaha hallmark of True Sound. You can feel the quality in the design and fabrication – from every electrical path, component and piece of material. Each element was scrutinized with intense detail to produce the finest, first-class performance. The AVENTAGE AV receiver is a work of visual and acoustic art.

SURROUND:AI™

Artificial intelligence (AI) technology built into the DSP analyses the scene of the entertainment content and then creates the optimal surround effect to reproduce it with the ultimate impact. This AI instantaneously analyses scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes the surround effect in real time. Imagine having a Yamaha sound engineer listening right next to you, tuning the best sound live and specifically for you. AI technology creates a compelling sense of realism with expressive power beyond conventional sound field effects, giving you the most profound entertainment experience possible. Qualcomm® QCS407 with 64-bit high precision processing delivers precise surround sound.

Cinema DSP HD3 for Movie, Music and Games

This Yamaha flagship 3D sound field playback technology was created by combining actual measured sound field data with cutting edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximizes theatre sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. By using front, centre and surround speakers to create a rear virtual speaker, CINEMA DSP HD3 playback of up to 11.1 channels is possible.

Dolby Atmos® and Dolby Atmos Height Virtualization

Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio. For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization technology can simulate the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.

DTS:X®

DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favourite movies.

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

High Slew Rate Amplifier

The slew rate measures how quickly an amplifier can respond to a rapid change of input level, which contributes to delivering a precise signal transmission and is especially effective with high resolution audio signals. This newly designed circuit achieves both a high slew rate and stable signal transmission, allowing it to handle each audio signal with precision and accuracy.

High-Quality Digital Components

The Qualcomm® QCS407 is designed to provide truly superior audio performance, with support for Dolby Atmos and DTS:X immersive home audio, as well as a dedicated high-performance audio DSP. Incorporating the SABRE ES9007S Premier Audio DAC from ESS Technology to achieve an exceptional signal-to-noise ratio and up to 120 dB of dynamic range, this AV receiver produces professional quality digital audio.

Specifications

Amplifier Section

Channel: 7.2

Rated Output Power (1kHz, 1ch driven): 135 W (8 ohms, 0.9% THD)

Rated Output Power (20Hz-20kHz, 2ch driven): 110 W (8 ohms, 0.06% THD)

Maximum Effective Output Power (1kHz, 1ch driven): 165 W (8 ohms, 10% THD)

High Slew Rate: Yes

Surround Sound Processing

Surround:AI: Yes

CINEMA DSP: Yes (HD3)

DSP Programs: 24

Dialogue Level Adjustment: Yes

Virtual Presence Speaker: Yes

Virtual Surround Back Speaker: Yes

Dialogue Lift: Yes

SILENT CINEMA / Virtual CINEMA DSP: Yes

Dolby Atmos: Yes

Dolby Atmos Height Virtualizer: Yes

Dolby TrueHD: Yes

Dolby Digital Plus: Yes

Dolby Surround: Yes

DTS:X: Yes

DTS-HD Master Audio: Yes

Audio Features

File Format: MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz

Pure Direct: Yes

Compressed Music Enhancer: Yes

High-resolution Music Enhancer: Yes

YPAO multi-point measurement: Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation

YPAO Volume: Yes

Adaptive DRC (Dynamic Range Control): Yes

Initial Volume & Maximum Volume Setting: Yes

A.R.T. Wedge: Yes

Bi-amp capability: Yes

Audio Delay: Yes (0-500 ms)

DA Converter: 384 kHz / 32-bit ESS Hyperstream DAC ES9007S

Video Features

HDMI eARC: Yes

HDMI Audio Return Channel: Yes

HDMI Pass-through: 8K60AB, 4K120AB (via future update)

HDMI Up-scaling: Yes, up to 8K (via firmware update)

Dolby Vision: Yes

HDR 10+: Yes (via firmware update)

VRR/ALLM/QMS/QFT: Yes (via firmware update)

Connectivity

MusicCast Surround: Yes

HDMI Input/Output: 7 / 3 (HDMI2.1 / HDCP2.3)

HDMI CEC: Yes

USB Input: Yes

Network Port: Yes

Wi-Fi: Yes (2.4 / 5 GHz)

AirPlay 2: Yes

Bluetooth: Yes (SBC / AAC)

Front AV Input: USB

Digital Audio Input/Output: Optical: 3 / 0

Digital Audio Input/Output: Coaxial: 2 / 0

Analog Audio Input/Output: 6 / 0

Phono Input: Yes

Preout: 7.2-ch

Headphone Output: 1

Tuner

FM/AM Tuner: Yes (Availability varies by region.)

DAB Tuner: Yes (Availability varies by region.)

User Interface

On-screen display: Graphical User Interface

SCENE: SCENE PLUS (8 sets)

App Control: Yes (iPhone / iPad / Android phone / tablet)

Web Browser Control: Yes

Remote Control Unit: Yes

Zone Control

Zone 2 Audio Output: Preout / HDMI

Powered Zone: Zone 2

Zone Video Output: HDMI

+12V Trigger Output: 2

Remote (IR) Input/Output: 1 / 1

Party Mode: Yes

General

Standby Power Consumption (IR only): <0.4 W

Auto Power Standby: Yes

ECO mode: Yes

Dimensions (W x H x D): 435 x 191 x 442 mm (with antenna up: 435 x 270 x 442 mm)

Weight: 16.2 kg
