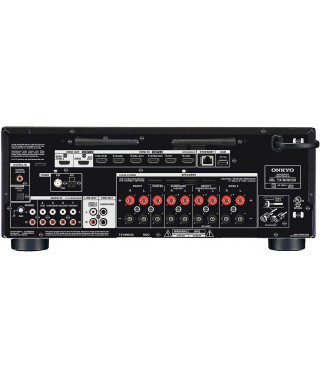

Onkyo TX-NR6100 AV Receiver

A top-notch receiver value from Onyko

I've long admired Onkyo for their lineup of high-performance, high-value home theater receivers. In fact, the last receiver that I owned was an Onkyo and it performed beyond its price tag. I believe you can expect something similar from the feature-packed TX-NR6100, which offers THX certification, the latest video game processing technology, and some cool ways to listen to music.

The seven-channel TX-NR6100 is ideal for powering a 5.1.2 Dolby Atmos or DTS:X™ system.

Advanced video processing for movies and more

Onkyo equipped the TX-NR6100 with the latest video technology. Three of its six HDMI inputs support crisp 4K/120 video content — perfect for high-quality sources like a 4K Ultra HD Blu-ray player, an Apple TV, or your next-gen gaming system. (The other three inputs support 4K/60 video content.)

Play music from a slew of sources

The TX-NR6100 lets you stream tunes from your phone or tablet via Bluetooth, Apple AirPlay 2, or Chromecast built-in. You can also play your collection of digital music files over your Wi-Fi network, or use the built-in phono input for your turntable. You can even play high-resolution tracks from a USB drive.

My favorite music feature of the 'NR6100? Bluetooth transmission to wireless headphones, which lets you watch TV or listen to music without waking up anyone else in the house (night owls, rejoice!).

Specifications

PRODUCT HIGHLIGHTS

210 W/Ch THX® Certified Select Dynamic Audio Amplification system ✓

5.2.2-channel Dolby Atmos® and DTS:X playback ✓

AccuReflex phase-matching solution for Atmos-enabled speakers ✓

SMART AV Receiver™ Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services

Works with Hey Google or Alexa Sold separately

Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard ✓

HDMI® inputs Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support up to 4K/60 and HDMI 2.0 features.

HDMI 2.1 HDMI 2.1 features are supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).

HDMI Sub/Zone 2 Out for media transmission to a second display ✓

Send or receive audio via Bluetooth® wireless technology RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD

Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines ✓

5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback ✓

Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks ✓

AMPLIFIER

Power output (All channels) 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)

Dynamic power 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)

THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, half power)

Input sensitivity and impedance 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)

Rated RCA output level and impedance 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)

Frequency response 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)

Tone control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)

Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)

Speaker impedance 4–16 ohms

TUNER

FM 87.5 MHz–107.9 MHz

AM 530 kHz–1,710 kHz

FM/AM preset memory 40 stations

GENERAL

Power supply AC 120 V~, 60 Hz

Power consumption (operating) 635 W

Power consumption (idle) 65 W

Power consumption (standby) 0.1 W

Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)

Weight 21.7 lb (9.8 kg)
