Denon AVC-X4800H 9.4 Channel AV Receiver

8K Video and 3D Audio Experience From a 9.4 Channel Receiver

Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® built-in, wirelessly stream your favourite music.

Features

Enveloping 3D audio: Feel like you're in the centre of the action with enveloping 3D sound.

Expert ready: Take advantage of the wide variety of configuration options to best fit your space.

Denon craftsmanship: Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.

Optimise for your room: Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional, with future update).

Specifications

Multichannel Surround

DTS HD Master / DTS:X / DTS:X Pro ✓ / ✓ / -

DTS Neo:X / DTS Neural:X - / ✓

DTS Virtual:X ✓

IMAX Enhanced ✓

Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music ✓ / ✓ / ✓ / ✓

Dolby ProLogic Ilz / Dolby Surround - / ✓

Auro 3D ✓

360 Reality Audio / MPEG-H ✓ / ✓

Multichannel Stereo ✓

Max Number of Processing (Preamp) Channels 11.4

Sound Enhancements

Discrete Power Amplifier ✓

D.D.S.C. HD Digital ✓ (32 Bit)

Pure Direct ✓

Clock Jitter Reducer ✓

Alpha Processing AL32 Processing Multichannel

Audyssey MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume ✓ / ✓

Audyssey LFC ✓

Dirac Live Upgradability ✓

Compressed Audio Restorer ✓

Network

Media Server ✓

HEOS Wireless Multi-Room Technology ✓

Alexa / Google Voice Assistant / Apple HomePod ✓ / ✓ / ✓

Lossy Formats: MP3 / WMA / AAC ✓ / ✓ / ✓

Lossless Formats: FLAC / ALAC / WAV ✓ / ✓ / ✓

Lossless Formats: FLAC HD / WAV / ALAC (All 192 kHz / 24 Bit) ✓ / ✓ / ✓

DSD Audio Streaming ✓ (2.8/5.6 MHz)

AirPlay 2 ✓

TuneIn ✓

Spotify Connect ✓

Roon Tested ✓

HEOS App Control ✓

Compatible with Remote App for Smart Phones ✓ (Denon 2016 AVR Remote)

Ethernet Ports ✓

Wi-Fi ✓

Bluetooth ✓

HDMI

HDMI Inputs: Back / Front 7 / -

HDCP 2.3 Support ✓

HDMI Outputs: Main / Zone 2 / 1

HDMI 2.1: 8K 60 Hz AB / 4K 120 Hz AB ✓ / ✓

HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR ✓ / ✓ / ✓ / ✓ / ✓

ALLM (Auto Low Latency Mode) Pass-Through for Gaming ✓

Variable Refresh Rate / Quick Frame Transport / Quick Media Switching ✓ / ✓ / -

3D Signal Pass-Through ✓

8K Signal Pass-Through / Scaling / GUI Overlay ✓ / ✓ / ✓

DSD Audio Capability ✓

Audio Return Channel (ARC) / Enhanced Audio Return Channel (eARC) ✓ / ✓

Auto LipSync ✓

Multiroom / CI

Multi-Room Zones 3

Zone Audio Source: HDMI / Optical, Coax / Network, USB / Analogue ✓ (2 Ch) / ✓ (2 Ch) / ✓ / ✓

Zone Audio Output: Speaker / Preout ✓ / ✓

Zone HDMI Output from HDMI Source ✓

IP Control / RS232 Control / Web Control / App Control ✓ / ✓ / ✓ / ✓

Remote In / Out ✓ / ✓

DC Trigger Output 3

HDMI Diagnostics ✓

Others

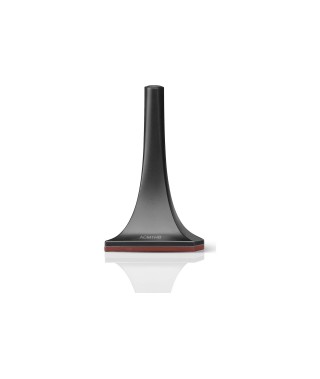

Auto Speaker Setup by Microphone Audyssey MultEQ XT32, Dirac Live (Upgrade)

Front Display 2 Line FLD

GUI Languages 3

Setup Assistant ✓

Quick Select Plus / Quick Select ✓ / -

Variable Crossover ✓

Optimised Bass Redirection ✓

Bass Sync ✓

ECO Mode ✓

Auto Power Off ✓

Sleep Timer ✓

Inputs / Outputs

HDMI In / Out 7 / 3

Multi-Room Video Out: Video / HDMI - / ✓

Analogue In / Out 6 / -

Phono (MM) In ✓

Digital In: Optical / Coaxial 2 / 2

Multi-Room Out: Analogue / Digital 2 / -

Multichannel Preout ✓ (11.4)

Subwoofer Out 4 (Independent)

Speaker Terminal: Gold Plated Screw / Regular Screw - / ✓

Number of Speaker Terminals 11

Speaker A/B Assignable

Bi-Amp Drive Assignable

Multi-Room Speaker Terminal Assignable

Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB - / - / - / - / ✓

USB Audio / Made for iPod / Made for iPhone ✓ / - / -

AM/FM Tuner ✓

Specifications

Number of Power Amps 9

Power Output (8 Ohm, 20 Hz - 20 kHz, 0.08% THD, 2 Ch Driven) 125 W

Power Output (6 Ohm, 1 kHz, 0.7% THD, 2 Ch Driven) 165 W

Power Output (6 Ohm, 1 kHz, 10% THD, 1 Ch Driven) 200 W

General

Metal Front Panel ✓

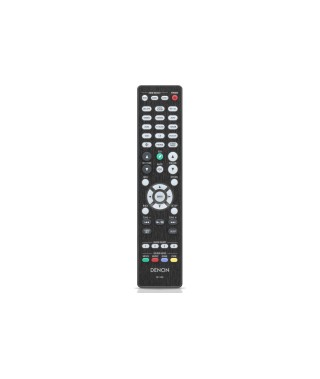

System Remote Control RC-1252

Pre-Programmed / Learnable / LCD Display ✓ / - / -

Power Consumption 710 W

Power Consumption No-Sound (ECO On / Off) 65 W / 110 W

Standby Consumption 0.1 W

CEC Standby Consumption 0.5 W

Network Standby Consumption Less Than 2.0 W

Dimensions - Antenna: Horizontal (W x D x H) 434 x 389 x 167 mm

Dimensions - Antenna: Vertical (W x D x H) 434 x 389 x 236 mm

Dimensions - No Antenna (W x D x H) 434 x 379 x 167 mm

Weight 13.4 kg

Weight in Packaging 16.0 kg
