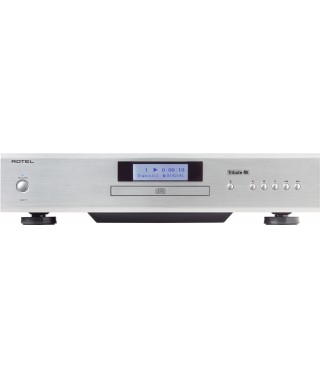

Rotel CD11 Tribute CD Player

Rotel has been designing and manufacturing CD players since 1989 and long confirmed it's digital audio expertise since the introduction of the first model, the RCD-855 CD player. Ever since Rotel has never looked back.

The CD11 continues this proud tradition with a carefully engineered power supply and Balanced Design topology of digital and analogue circuits. With clean lines and intuitive operation common with other 14 series models the CD11 brings musical details to life with ability beyond its modest price-point.

A Texas Instruments 24 bit 192kHz DAC provides the digital to analog conversion and the CD11 supports both RCA analogue and Coaxial digital outputs for flexible installation with any HiFi system. The front panel graphic display indicates playback status, track and time information, and also provides CD metadata such as song titles when available on the disc. An IR remote is included providing effortless control of the CD11. This unit also includes an RS232 connection and a 12V trigger input.

Features

Tray loading CD mechanism
Quiet operation
Texas Instruments 24 bit 192kHz DAC
RCA analogue and Coaxial digital outputs
Front panel graphic display
IR remote
12V trigger input
RS232 connection
Black and silver finishes

Specifications

DIMENSIONS (W × H × D)

430 × 98 × 314mm
17" × 3.8" × 12.4"

FRONT PANEL HEIGHT

80mm (3.15")

POWER REQUIREMENTS

230V, 50Hz

POWER CONSUMPTION

15W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

5.8kg (12,7lbs.)

BTU RATING

40 BTU/h

TOTAL HARMONIC DISTORTION (THD)

0.005% @ 1kHz

FREQUENCY RESPONSE
20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)
>125dB

DYNAMIC RANGE
>99dB

DIGITAL TO ANALOG CONVERTERS

Texas Instruments

CHANNEL BALANCE

±0.5dB

CHANNEL SEPARATION

>115dB @ 10kHz

OUTPUT LEVEL
Digital (Coax): 0.5V

OUTPUT IMPEDANCE
Line Level: 470Ω
Digital (Coax): 75Ω
