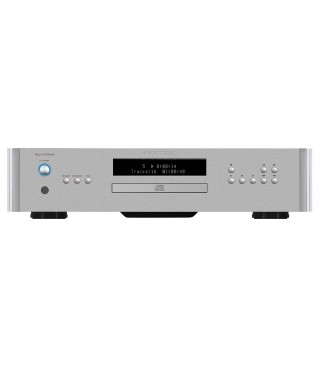

Rotel RCD-1572 MKII CD Player

672563775116

Call or Email Us now for a better deal!

$1,484 Save 10%
$1,649
Tax included
*Seen it cheaper elsewhere? We do price match.
Colour
Quantity

The RCD-1572MKII follows Rotel’sproud tradition and heritage of engineering and manufacturing award-winning CD players since 1989 supporting the over 200 billion CDs sold in the market with authentic, genuine detail delivering an exceptional sense of space and depth.

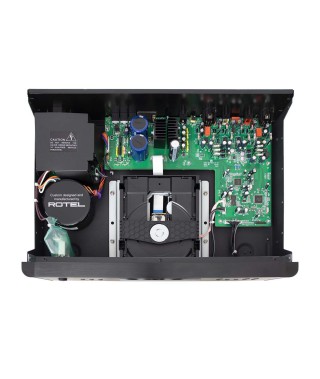

Utilizing an ultra-low noise in-house manufactured toroidal transformer the RCD-1572MKII’s analog and digital audio circuits, function control circuits and CD mechanism motor power supplies circuits are fed by individual transformer output windings each with dedicated voltage and current regulators for noise isolation. Further isolation optimizations were achieved with custom circuit board layout techniques all of which ensures the resulting audio is electrically and physically separated, clean and free from unwanted distortion.

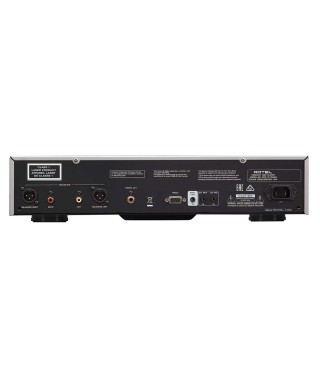

A premium Texas Instruments 32-bit Digital to Analog converter is supported by Rotel’s proprietary Balanced Design Concept engineering method with custom-tuned external analog output filters ensuring an exceptionally precise frequency response. A fully balanced, true differential XLR Balanced output, an RCA output and coaxial digital output provide the ultimate connection flexibility to your favorite audio system.

The smooth action CD tray loader and front panel display ensures effortless playback of your favorite discs using the intuitive IR remote or front panel control buttons packaged in an efficiently sized 2U height chassis for seamless operation and the ultimate in convenience. The RS232, 12V trigger and IR remote input provide easy integration with popular control systems. Optional rack ears are available.

The RCD-1572MKII is both classic and refined ready for your music collection delivering stunning detail and extraordinary clarity.



Specifications

Total Harmonic Distortion (THD) 0.0035% @ 1 kHz

Frequency Response 20 Hz - 20 kHz ±0.5 dB

S/N Ratio (IHF "A" Weighted) >118 dB

Dynamic Range >99 dB

Digital to Analogue Converters Texas Instruments

Channel Balance ±0.5 dB

Channel Separation >118 dB @ 10 kHz

Analogue Output Level Unbalanced (RCA): 2.2 V, Balanced (XLR): 4.5 V

Digital Output 0.5 V, Peak to Peak

Analogue Output Impedance Unbalanced (RCA): 100Ω, Balanced (XLR): 200Ω

Load Impedance 75Ω

Dimensions (W x H x D) 431 x 104 x 320 mm (17" x 4" x 12.6")

Front Panel Height 2U / 88.1 mm (3.5")

Power Requirements 230 V, 50 Hz

Power Consumption 15 W

Standby Power Consumption <0.5 W

Net Weight 7.34 kg (16.18 lbs.)
