Accuphase DP-770 Precision MDSD SACD-CD Player

The high rigidity, high precision drive traverse mechanism equipped with an outer rotor brushless DC motor drive rotates discs smoothly and delivers accurate data reading, while the 8MDSD (DSD signal) / 8MDS++ (PCM signal) type D/A converter driving the ES9028 PRO (ESS Technologies) processor in 8 parallel channels converts the inputs into highly precise analog signals. The DP-770 also incorporates numerous noise suppression technologies like ANCC* to create an unparalleled musical experience.

Features

High-rigidity, high-precision aluminum machined SA-CD/CD drive with low center of gravity

MDSD/MDS++ D/A converter driving 8 parallel channels using ANCC

Programmable playlists so that you can enjoy your music in the order you want

Data disc playback

Direct Balanced Filter with completely separate line and balanced signals

Display with sampling frequency and number of quantization bits

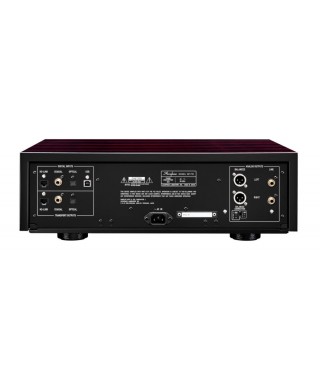

Abundant transport outputs and digital inputs

Digital connections to an Accuphase Voicing Equalizer

Balanced output phase selector

Specifications

Compatible Disc Formats: 2-channel Super Audio CD, CD, DSD disc DVD-R/-RW/+R/+RW (DSF file format), Data disc CD-R/-RW, DVD-R/-RW/+R/+RW (Supported formats: WAV, FLAC, DSF, DSDIFF)

Data Read Principle: Non-contact optical pickup

Laser Diode Wavelength: SA-CD-655 nm, CD-790 nm

D/A Converter: CD playback and external input (PCM) – 8 MDS++ type, SA-CD playback and external input (DSD) – 8 MDSD type

Frequency Response: 0.5 to 50,000 Hz +0, –3.0 dB

THD + Noise: 0.0004% (20 to 20,000 Hz)

Signal-to-Noise Ratio: 121 dB

Dynamic Range: 119 dB

Channel Separation: 118 dB (20 to 20,000 Hz)

Output Voltage: BALANCED – 2.5 V 50 ohms, balanced XLR type, LINE – 2.5 V 50 ohms, RCA phono jack

Output Level Control:  0 dB to –80 dB in 1-dB steps (digital)

Power Requirements: 230 V AC, 50/60 Hz

Power Consumption: 30 W

Maximum Dimensions: Width 477 mm ( 18.8″) Height 156 mm (6.1″) Depth 394 mm ( 15.5″)

Weight: 28.5 kg (62.8 lbs) net, 35.0 kg (77.2 lbs) in shipping carton
