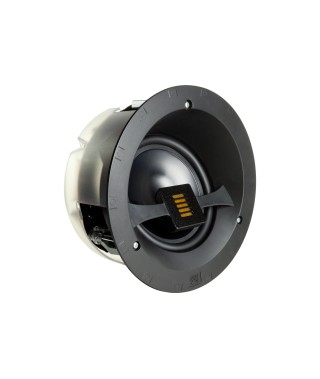

Martin Logan EM-R In-Celling Speaker

877929006860
Ask our expert.
Call (03) 85550735,Live Chat or

Ask a question about this product

Call or Email Us now for a better deal!

$1,299
Tax included 2-7 Workings Days
*Seen it cheaper elsewhere? We do price match.
Quantity

Folded Motion™ Tweeter

MartinLogan's exquisite Folded Motion tweeter boasts a radiating surface 8-times larger than a typical 1" dome tweeter. The Folded Motion Tweeter works by moving air (which creates sound) perpendicular to the folded ridges of the diaphragm, similar to how an accordion works.

This extremely low mass diaphragm "squeezes" air and requires almost 90% less excursion than the typical 1" dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

Installer Friendly

A robust mounting-lock system allows quick, trouble-free installation. When not in use, the constant-control mounting locks are held securely within a self-contained housing. When moved into place during installation, they couple the speaker's chassis firmly to the ceiling. And if the speaker is ever removed, the locks retract and latch themselves back in their housings.

Installers rejoice as the Folded Motion tweeter is mounted at an angle, allowing the entire speaker to rotate to aim sound precisely where you want it.

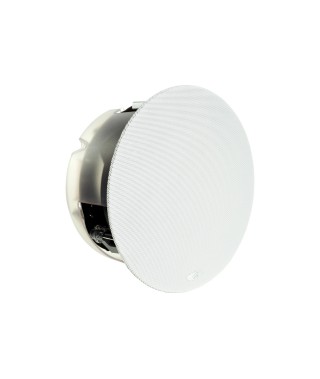

Stealthy Grilles

MartinLogan's new architectural speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for an near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.



Precision-Built,Advanced-Topology Vojtko™ Crossover

Carefully hand-built using only the finest polyester capacitors and air-core coils, the crossover employ's MartinLogan's proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.

Multi Application Use

The EM-R is suitable for any application in small to large rooms. Ideal for use in a multi-channel home theater as a surround speaker, in a kitchen as 2-channel stereo speaker, or in a hallway as part of a distributed audio system.



Features & specifications

Specifications are subject to change without notice
Frequency Response

37–25kHz ±3dB

Recommended Amplifier Power

20—300 watts per channel

Horizontal Dispersion

80°

Vertical Dispersion

80°

Sensitivity

92 dB/2.83 volts/meter

Impedance

4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

2,600 Hz

High Frequency Transducer

1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.

Low Frequency Transducer

8" (20.3cm) aluminum cone with cast aluminum basket. Concave dust cap.

Components

Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/cur- rent protection.

Inputs

Push style binding posts with banana jack.

Weight

8 lbs. (3.63 kg)

Cut-Out Dimensions

10.5" dia.
(26.7 cm dia.)
