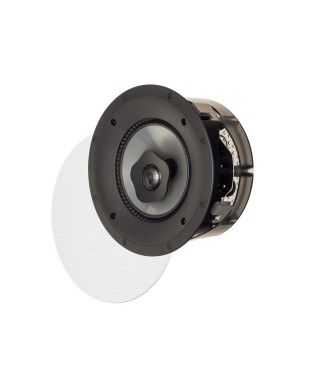

Paradigm CI Pro P65-RX In-Ceiling Speaker Marine Applications

Features

• 6.5" Mineral-Filled polypropylene Bass driver w/ overmolded ART™ surround

• 1" X-PAL™ dome Tweeter w/ Reduced Edge Diffraction Technology

• Suits 15-100W Amplifier power range; 8 ohms compatible

• Stainless-steel Micro-Perf grille, screws & springs

• E-Coated Corrosion-resistant chassis and clamps

• Weather-resistant rubber ring with grommets secures grille to speaker

MARINE APPLICATION SPEAKERS

Excessive moisture, corrosive salt spray, harsh UV rays and general temperature fluctuations all call for an extreme speaker; a custom install speaker designed expressed for environments where excessive moisture is an issue.

Santoprene Thermoplastic Elastomer surrounds

E-Coated Corrosion-resistant chassis and clamps

Conformal Coating on PCB’s and Crossover

Stainless-steel Micro-Perf Grille

Weather-resistant rubber ring with grommets secures grille to speaker

Stainless Steel Screws and springs

The Custom Installer’s Smarter Choice

The CI Pro™ Series is Crafted in Canada, taking performance to the next level with patented technology, step-up components, hallmark Paradigm sound quality, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

Innovative Technology makes the Difference

NEW X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens that protects the delicate pure-aluminum tweeter dome and acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output.

Our tweeter designs are cooled by the original ultra-stable Ferrofluid, made exclusively by Ferrotec. Ferrofluid is a colloidal suspension of magnetic nano particles in a liquid carrier with low volatility and high thermal stability.

Superior Mineral-Filled Co-Polymer Polypropylene Bass/Midrage Cones Oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear.

Paradigm’s patented† Active Ridge Technology (ART™) surrounds, made in-house and overmolded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. Crafted from audiophile-grade injection-molded thermoplastic elastomer, ART™ surrounds are more durable and reliable, for a lifetime of superior sound.

† US patents: D654,479S and 8,340,340B2.

Super-strong die-cast aluminum baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Reduced Edge Diffraction (RED™) Technology

RED™ Technology (patent pending) is a die-cast aluminum tweeter housing that significantly reduces negative effects of diffraction while improving critical midrange frequencies. The irregular edges and off-center placement break up standing waves typically found around the woofer cone and tweeter housing of traditional designs.

Additionally, the aluminum structure dissipates unwanted heat which increases power handling and allows a lower crossover frequency, improving sound and reducing distortion.

Advanced Features for a Solid and Secure Installation

Die-cast aluminum clamps add strength and rigidity for better bass and midrange, along with a more durable installation.

NEW Rear Component Shielding protects internal parts from debris. The translucent polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.

NEW Stainless Steel Micro-Perf Grilles.

Pocketed screw holes help to hold the drill steady, making installation a snap.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

A Behind-the-Ceiling Look at Our Die-Cast Aluminum Clamps

Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!

Specifications

DESIGN: 2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle

FREQUENCY RESPONSE ON-AXIS: ±3 dB from 75 Hz - 22 kHz

HIGH FREQUENCY DRIVER: 1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens

MID/BASS FREQUENCY DRIVER: 6.5" (16.5cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis

SENSITIVITY ROOM / ANECHOIC: 91.5 dB / 87.5 dB

IMPEDANCE: Compatible with 8 ohms

FINISHES: White, paintable grille, black/grey speaker

WEIGHT: 5.7 lbs. (2.6 kg)

LOW FREQUENCY EXTENSION: 41 Hz

CROSSOVER: 2nd-order electro-acoustic at 2.5 kHz

FREQUENCY RESPONSE 30° OFF-AXIS: ±3 dB from 75 Hz - 18 kHz

SUITABLE AMPLIFIER POWER RANGE: 15-100 W

MAXIMUM INPUT POWER: 80 W

OVERALL DIMENSIONS: 8.875" (22.5cm) Diameter 4.25" (10.8cm) Depth

CUT-OUT DIMENSIONS: 7.75" (19.7cm) Diameter

MINIMUM MOUNTING DEPTH: 4" (10.2cm)

Specifications are subject to change without notice.
