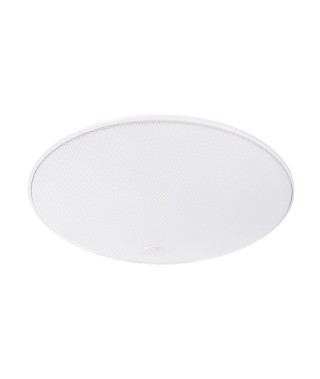

Paradigm Signature 1.5R-30 V3 In-Ceiling Speaker

A DISAPPEARING ACT THAT’S TOUGH FOR THE COMPETITION TO FOLLOW!

It’s not often that Paradigm makes a fuss about removing something from a speaker but this is one of those times. The whole point of ceiling speakers is in the aesthetic. When customers choose Paradigm in-ceilings, it’s a given they want to hear great sound, they just don’t want to see it. We complied, making our virtually invisible in-ceiling bezels even less visible across the Signature Series in-ceiling lineup. The odd time your customer looks up at the ceiling, there won’t be much to see … which is exactly what they’re looking for!

MODEL ENHANCEMENTS

NEW! Thinner, Sleeker Bezels with more transparent scrim for a cleaner, disappearing aesthetic with increased sonic transparency.

NEW! low-density NLC™ Non-Limiting Corrugated thermoplastic elastomer TPE Surround, trickle down technology from our Signature Series. FEA optimized and overmolded onto the polypropylene cone.

In concert with the new motor structure (see below) we’ve achieved double the power in these models! + 3dB! The speaker now plays louder. The thermoplastic elastomer is ten times more effective than standard elastomers in damping vibrations and resonances and the corrugations increase peak-to-peak excursion. While we would have loved to have effected this change across models, the Guided Soundfield model was the only model physically able to accommodate the size and quantity of corrugations needed and the larger motor structure.

NEW! Motor Structure Includes a Three-Split Voice Coil, thicker top plate and larger ceramic/ferrite magnet. The new structure further improves low-frequency sound distortion at high excursion while maintaining the much-lauded frequency response of the previous generation. The speaker can play significantly louder now, but without a hint of compression/distortion.

ABOUT THE IN-CEILING & IN-WALL MODELS FOR THOSE WHO ARE WONDERING! Thinner bezels are not an aesthetic issue in in-walls, so bezels were left untouched.

Full-Perimeter Bracket Design. Unlike typical mounting ears, brackets cover the full diameter or height and width of the speaker chassis to effectively sandwich and strengthen the area around the mounting hole.

Cutting-Edge P-Be™ Pure-Beryllium Domes. Exotic beryllium! The metal of choice for truly ultimate levels of high-frequency performance. A stiffness-to-density ratio superior to metals such as aluminum, titanium and even diamond. Performance is clear, uncolored and completely uncompromised.

Cutting-Edge Co-PAL™ Cobalt-Infused Pure-Aluminum Cones. Combine high stiffness-to-mass ratio with superior internal damping for an even greater degree of accuracy. Advanced Nomex® cloth suspensions and butyl rubber surrounds promote superb and extended excursion.

Cutting-Edge Mineral-Filled Co-Polymer Polypropylene Bass Cones. Superior stiffness-to-mass. Precision-engineered for higher sensitivity, power handling and ultra-low levels of distortion. Massive optimized ceramic ferrite or neodymium magnet / motor structures with focused-field geometry.

Combination Ultra-Rigid™ Die-Cast Chassis and GRIP™ Glass-Reinforced Injection-Molded Polymer Bracket. Supremely rigid structure reduces resonances and standing waves. The use of an aluminum chassis allows the chassis to function as a heatsink.

Specifications

Design Guided Soundfield™ system, 2-driver, 2-way in-ceiling, drivers mounted at 30° relative to mounting surface, Ultra-Rigid™ die-cast chassis with GRIP™ mounting bracket

Crossover 3rd-order electro-acoustic at 2.5 kHz

Frequency Response   On-Axis ±2dB from 58 Hz – 45 kHz

Frequency Response   30° Off-Axis ±2dB from 58 Hz – 17 kHz

High Frequency Driver 25-mm (1 in) P-Be™ dome, rear damping chamber with ARB™ fins and integrated heatsink, dual super-neodymium magnets, die-cast heatsink chassis

Mid/Bass Frequency Driver 210-mm (8 in) Co-PAL™ cone, anodized solid-aluminum phase plug, 38-mm (1-1/2 in) dual-layer voice-coil, ceramic / ferrite magnets, AVS™ die-cast heatsink chassis

Low Frequency Extension 37 Hz (DIN)

Sensitivity   Room / Anechoic 92 dB / 88 dB

Impedance Compatible with 8 ohms

Suitable Amplifier Power Range 15 – 225 watts

Maximum Input Power 140 watts

Finishes White, paintable

Weight 4.4 lbs. (2 kg)

Overall Dimensions 11.625″ (29.6cm) Diameter

Cut-Out Dimensions 10.625″ (27cm) Diameter

Minimum Mounting Depth

Depth required is the distance

between 1/2″ drywall, or similar material. 5.5″ (13.9cm)

Minimum Internal Volume Required 0.70 cu ft (20 L)

Specifications are subject to change without notice.
