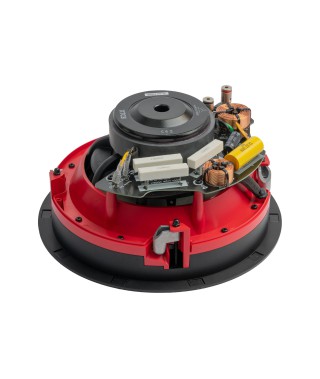

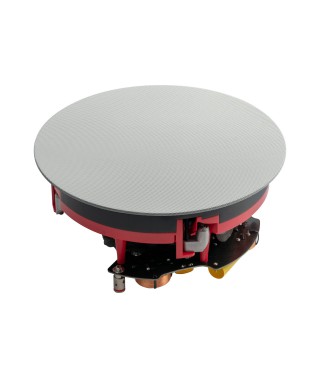

Martin Logan Motion XTC8 In-Ceiling Speaker

For true next level performance over the MC8 (its Motion CI counterpart), the XTC8 features our largest and highest performing FMT XT and a woven Kevlar woofer. These features make a noticeable improvement to the sound but also help to reduce unwanted room acoustic artifacts. With a more controlled 80 x 30 dispersion, the FMT XT is a powerful tool that delivers unheard levels of realism from a CI speaker in even the most acoustically challenging rooms. The XTC8 is a great choice for a high performance whole house music system, or for premium home theater. Its unique combination of high-performance drivers and controlled dispersion allows you to control where sound is placed in a room and provides an even better experience.

The Sound of Invisibility:

Folded Motion Tweeters XT

MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters advance thin-film transducer technology even further with a 40% larger radiating surface and 80x30-degree controlled dispersion.

This upgrade increases audible bandwidth without sacrificing detail and reduces distortion to an incredibly low level while increasing efficiency and the tweeter's already lightning-fast response time. The result is superior realism and alarming specificity that is aurally astounding, and only by MartinLogan.

Woven Kevlar Cones

All Motion XT CI speakers feature very lightweight woven Kevlar cones specifically engineered to keep pace with the lightning speed of our highest performance Folded Motion Tweeter XT. While these high-performance drivers offer both increased rigidity and lightness, we took an extra step by adding a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. This layer is not something you can see after installation, but it matters to the performance of the speaker, so it matters to us. No matter which Motion XT CI speaker you choose for your room, rest assured they are designed to provide a consistently high level of performance and can easily be used with other MartinLogan speakers to make creating the perfect system for your unique listening space that much easier.

The MartinLogan Sound

MartinLogan Motion XT CI speakers sound great in any room. Regardless of the environment, our speakers just sound better, more articulate, more detailed, and more realistic. With Controlled Dispersion and one of the most responsive tweeters in the industry, our in-wall and in-ceiling models can compete with and often exceed the performance of traditional cabinet speakers.

Micro-Perforated Grilles

All Motion XT CI models feature an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. Optional square grilles are available for the MC8, MC6-HT, MC6 and MC4.

Proprietary Vojtko Crossover Networks

Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko.

His unique approach to crossover design is just as crucial to MartinLogan's Truth in Sound as are our innovative electrostatic and Folded Motion thin-film driver technologies. A Vojtko Crossover isn't just a set of design requirements; it's a philosophy.

Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.

Hand-Selected Components

In designing each crossover topology, we take the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.

Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It's a recipe for vanishingly low distortion and seamless driver integration.

The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers deliver Truth in Sound in any room, including yours.

Pre-Installation Brackets (sold separately)

Pre-installation brackets are available for every model in the Motion XT CI Series.

Specifications

Frequency Response

51 - 25,000 Hz 3dB

Tweeter Controlled Dispersion

30 x 80 degrees

Sensitivity (anechoic)

91dB @2.83V/ 1 meter

Impedance

4 ohms. Compatible with 8 ohms

Crossover Frequency

2,270 Hz

Crossover Type

2 way

Driver Configuration

1 x 1.27 x 2.75 FMT, 1 x 8 Woofers High Frequency Driver FMT Transducer 1.27 x 2.4 (3.22cm x 6.09cm) Opening 4.5 x 2.75 (11.43cm x 6.98cm) Diaphragm

Woofer Specifications

One 8 (20.32 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.

Connectors

Push style

Components

Custom air core coil inductors, polypropylene film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.

Cabinet Material

Black w/ White Paintable Grill

Suggested Amplifier Power

Range 50 300 Watts

Maximum Power Handling

150 Watts

Weight (grille)

7.9 lbs. (3.58 kg) each

Weight (no grille)

7.6 lbs. (3.44 kg) each

Overall Size (dia. x depth)

10.35 x 5.30 (26.28cm x 13.46cm)

Required Opening

9.25 (9.5cm) diameter

Projection From Wall

0.33 (23.5cm)

Depth Required Behind Wall

5.50 (13.97cm)
