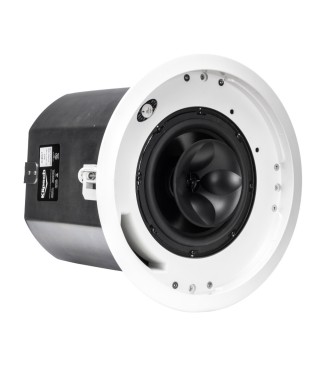

Klipsch IC-800-T Commercial In-Ceiling Speaker

Klipsch IC-800-T Single Commercial In-ceiling Speaker handles power up to 400 Watts delivering smooth response and deep bass.

The IC-800-T packs proven materials and Tractrix® horn technology into a high performance, install friendly, UL-2043 & 1480 certified loudspeaker with an integrated backcan. For distributed applications, the IC-800-T features a 70/100 volt, 100 watt, multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap settings is conveniently located under the speaker grille.

The two-way IC-800-T features an 8-inch woofer and 1 inch titanium diaphragm compression driver on a 3.5 inch Tractrix Horn for smooth response and exceptional off-axis performance. The Tractrix port design helps provide deeper, extended bass with less distortion. The low insertion loss 100 watt transformer means you’ll be able to achieve higher output levels with less compression due to transformer saturation.

The IC-800-T is shipped complete with a tile-bridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.

Features

Tight 75 degree coverage pattern for high ceiling applications

100 watt, low insertion loss, multitap transformer for high output and less compression

70-volt, 100-volt or low impedance peration selectable via a front baffle switch

Tractrix port design for deep bass with improved linear response

Excellent low-frequency performance for applications where low-frequency bass extension is required

Designed to mix & match with Klipsch CA-T speakers

Specifications

Color White

Speaker Type In-Ceiling Speaker

Enclosure type Bass Reflex via Tractrix Port

Frequency Response 49 Hz - 20 kHz

Power 400 Watts

Woofer Size 8"

Woofer Bass Driver Size (mm) 203 mm

Tweeter 25 mm

Impedance (Ω) 8 Ω

Sensitivity 92 dB

Item Sold As Pair

Warranty Australian Manufacturer Warranty

Dimension

Product Dimension (H×W×D) Ø 359 x 333 mm (ea)

Hole Cutout Dimensions Ø 321 mm (ea)

Mounting Depth 324 mm (ea)

Product Weight 9.5 Kg (ea)
