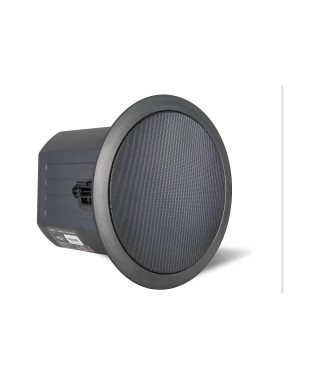

Klipsch IC-650-T Commercial In-Ceiling Speakers

Klipsch IC-650-T In-Ceiling Speaker packs proven materials and wide dispersion horn technology into an installer-friendly UL-certified (2043 and 1480) in-ceiling speaker with an integrated back can and multi-tap transformer.

A two-way design the speaker features a 6.5-inch woofer and 1-inch titanium diaphragm compression driver mated to a round Tractrix® Horn with XT technology for a smooth response with constant directivity. The 1-inch Tractrix port provides deeper fuller bass with less compression and distortion.

The IC-650-T pack's proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and 1480 certified loudspeaker with an integrated back can and multi-tap transformer. IC-T Series speakers have been included in a number of major installations nationally, from Bloomingdale’s in New York City to the Ron Jon Surf Shop in Orlando.

The two-way IC-650-T features a 6.5-inch woofer, and 1-inch titanium diaphragm compression driver on a 3.5-inch round modified XT Tractrix® Horn for the smooth response with constant directivity. A Tractrix port design helps to provide deeper, fuller bass with less compression and distortion. A new, more compact design simplifies low ceiling mounting.

For distributed line applications, the 0-T features a 70/100 volt multi-tap transformer. A single rotary switch for the 4-ohm bypass and multi-tap setting is conveniently located under the speaker grille. The IC-650-T is shipped complete with a ridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.

Features

Wider, shorter design to fit low ceilings; multi-tap transformer

70-volt, 100-volt, or 8-ohm operation selectable via front baffle switch

Tractrix® Port design for deep bass with less compression

Wide dispersion Tractrix® Horn tweeter with XT technology for clear sound in any location

Designed to mix and match with Klipsch CA-T speakers

Specifications

Speaker Type In-Ceiling Speaker

Speaker Special Features 2-Way Speaker Design

Frequency Response 50 Hz - 20 kHz

Power 80 Watts

Woofer Size 6.5"

Woofer Bass Driver Size (mm) 165 mm

Tweeter 25 mm

Sensitivity 90 dB

Item Sold As Pair

Warranty Australian Manufacturer Warranty

Dimension

Product Dimension (H×W×D) Ø 273 x 278 mm (ea)

Hole Cutout Dimensions Ø 257.175 mm (ea)

Mounting Depth 269.9 mm (ea)

Product Weight 5 Kg (ea)
