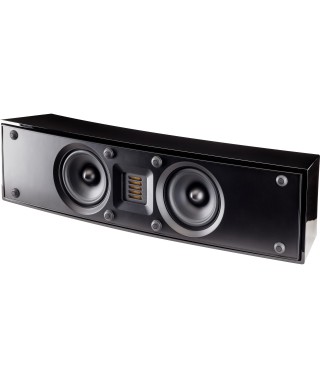

Martin Logan Motion 8i Centre Speaker

Motion 8i Compact Speaker
Audiophile performance without an audiophile price. Inspired by the clarity and detail of MartinLogan's ultra-high-end electrostatic loudspeakers, Motion 8i features a Folded Motion tweeter, dual 4-inch paper cone woofers, and a proprietary Vojtko crossover network in a compact and affordable package. Flexible installation options allow table top or on-wall installation. Motion 8i mounts horizontally or vertically, ideal for placement around a wall-mounted flat screen television. Motion 8i also featur

Sound Inspired by Electrostatic Speakers
The success of the Motion Series is directly attributed to its close relation to MartinLogan’s legendary ultra-high-end electrostatic loudspeakers. The desire to transmute that level of performance into a more traditional loudspeaker at a more affordable price drove the initial design imperatives that created the Motion Series.

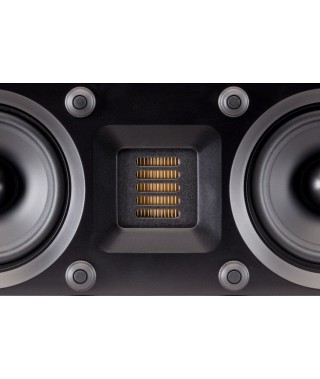

Folded Motion® Tweeters
MartinLogan's signature Folded Motion tweeter utilizes an extremely low mass diaphragm that "squeezes" air, thus demanding significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that's able to deliver much of the high-frequency detail and speed of a large, dynamic electrostatic panel in a small space.

Proprietary Vojtko ™ Crossover Networks
Compact Motion Series speakers feature proprietary Vojtko crossover networks using custom air core coil inductors, low DCR steel laminate inductors, and polyester film and low-DF electrolytic capacitors for a seamless sonic presentation.

Vojtko crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is as big of a part of the "MartinLogan Sound" as are electrostatic and Folded Motion thin-film driver technologies. A Vojtko crossover isn't so much a set of design requirements as it is a philosophy. Vojtko crossovers are designed in such a way that all drivers are kept within their optimal frequency range and balanced with one another. The drivers themselves are as much a part of a Vojtko crossover as are capacitors and resistors. Before the design of any crossover begins, drivers are carefully selected or designed to operate within a very intentional frequency range and with precise and predictable performance parameters. Vojtko crossovers are always built from high-quality parts, and care is taken to avoid overly complex topologies—a straightforward objective due to the careful selection of woofers and tweeters. The final (and most critical) aspect of a Vojtko Crossover is that final voicing is conducted in a space that is indicative of a real-world environment. This pragmatic approach allows MartinLogan speakers to sound their best in real-world rooms.

Modern Curves and Luxurious Finish
After refining the perfecting the acoustic details, MartinLogan designers focused on elegant yet understated styling that complements flat-panel televisions and other high-end components. To achieve this, we gave compact Motion bookshelf and center channel speakers a flawless gloss black finish and compact, slender enclosures. Subtle curves, along with MartinLogan's signature perforated grille, add to the elegant and timeless look.

Easy Hookup
Convenient, high-quality, push-style binding posts are recessed into the speaker's cabinet along with curved guides that allow wires to slide into place effortlessly. These binding posts are also designed to facilitate the use of banana plug connectors.

Features & specifications

Specifications are subject to change without notice
Frequency Response

70–23,000 Hz ±3dB

Recommended Amplifier Power

20—180 watts per channel

Horizontal Dispersion

80°

Vertical Dispersion

80°

Sensitivity

89 dB/2.83 volts/meter

Impedance

4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

3,000 Hz

High Frequency Transducer

1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm

Low Frequency Transducer

Two 4" (10.2cm) paper cone with stamped steel basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Sealed.

Components

Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

Inputs

Push style with banana jacks

Weight

8.5 lbs. (3.85 kg)

Dimensions

5.6" x 22.25" x 5.2 "
(14.2cm x 56cm x 13.2cm)
