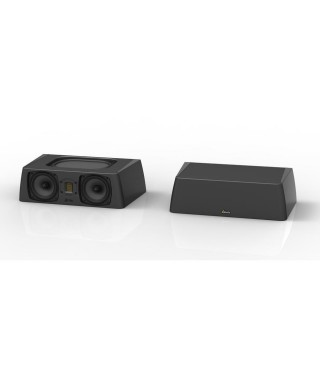

GoldenEar SuperCentre X Centre Speaker

The SuperCenters are high-performance center channel speakers appropriate for the highest quality home theatre systems. They are designed to perfectly complement and match our Triton Towers and Aon Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated industrial design is both attractive and functional, both minimizing their apparent size as well as enhancing their acoustic performance.

These center channel speaker models incorporate a D’Appolito Array of two newly developed long-throw 5-1/4˝ bass/midrange drivers (four, with reference focused field magnet structures, on the Reference model) surrounding one of our signature High Velocity Folded Ribbon (HVFR) tweeters (and a High-Gauss Reference HVFR on the Reference model). The 5-1/4˝ drivers incorporate spiderleg cast baskets for rigidity and minimal internal reflection, as well as our unique multi-vaned phase plugs (MVPP), to minimize cross-apex wave propagation interference. They also utilize top-mounted pressure-coupled quadratic planar low frequency radiators that both extend the bass response as well as provide the bass/midrange drivers with ideal acoustic loading and damping. Since the top-mounted passive radiators put out a very low frequency pressure wave, they only require an inch or two of clearance above them so they can be placed in cabinets/wall units if desired (always position the speaker at the front of the opening for best performance)..

Sonically, the SuperCenters offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless sound quality that our SuperSat centers are famous for, but with additional low frequency extension and greater power handling capacity for greater dynamic range and impact.

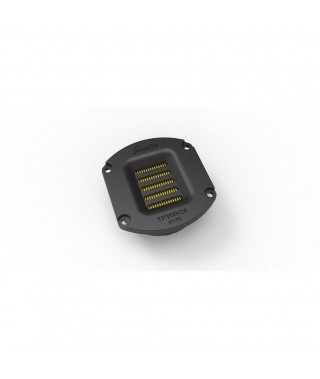

High-Velocity Folded Ribbon Tweeter (HVFR)

Tweeter Diaphragm is a High Temperature Film

High-Power Neodymium Magnets

Squeezes/Pressurizes Air Instead of Pushing It

Greater Control, Smoother More Extended Response

Vanishingly Low Distortion

Dramatically Improved Dynamic Range and Detail

Superb Dispersion Characteristics

High-Gauss Reference HVFR on Reference Model

5-1/4˝ High-Definition Bass/Midrange Driver

GoldenEar Multi-Vaned Phase Plug (MVPP) Design

Rigid Free-Flow Cast-Basket Chassis

Proprietary Computer Optimized Cone Topology

High-Gauss Magnet Assembly (Focus Field design on Reference model

1˝ High-Temperature Kapton Former Voice Coil

Extremely Extended Resonant-Free Linear Frequency Response Characteristics

Quadratic Planar Low-Frequency Radiator

Pressure-Coupled Loading Extends Usable Bass Performance

Performs Like a well-Tuned Transmission Line but with Superior transient Performance and Control

SuperCenter X Uses One, SuperCenter XL Uses Two, SuperCenter XXL Uses Three

Specifications

Dimensions - 20˝ (50.8 cm) W x 5-3/4˝ (14.6 cm) H x 11˝ (28.0 cm) D

Weight - 7kgs

Frequency Response - 45 Hz - 35 kHz

Efficiency - 90 dB

Nominal Impedance - Compatible with 8 ohms

Driver Complement - Two - 5-1/4˝ Cast-Basket Mid/Bass Drivers, One - HVFR™ High-Velocity Folded Ribbon High-Frequency Radiator, One - 7˝ x 10˝ Quadratic Planar Low-Frequency Radiator

Recommended Amplifier - 20 - 200 watt/channel
