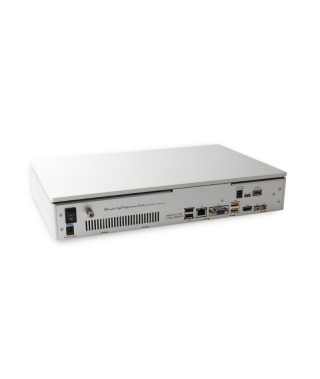

SOtM sMS-1000SQ Eunhasu Music Server / Player

As traditional network technology has been progressing faster than ever before it has carried network audio technology farther and faster than any other form of audio technology before it. To use a metaphor, we can compare the speed of network audio technology development to the hare racing against the tortoise. Yet we should not overlook the perseverance of the tortoise in the race, the fundamentals of audio technology.

SOtM already grabs the technical power specialized in sound quality, like the perseverance of the turtle in the race which is the most important element of an audio system. Taking advantage of such technological power, SOtM has successfully introduced the sMS-1000SQ. A product which satisfies the demand for sound quality and functionality while gaining a competitive edge in terms of both price and technological superiority.

The sMS-1000SQ Eunhasu is offered with diversified options allowing the customers to freely customize their experience by personal taste and requirement. Yet, the sMS-1000SQ is also capable of providing high quality sound with the basic default specification and can enhanced further by using a separate external power supply to the USB audio port. In addition, by adding a separate high performance sCLK-EX clock module, the sMS-1000SQ Eunhasu can be upgraded easily to the next level of sound bringing a more detailed, transparent and dynamic sound.

The sMS-1000SQ Eunhasu is provided with a SSD as a standard feature focusing on faster speed and less noise which directly effects on sound quality. Further, a larger capacity SSD or HDD can be installed. Moreover, a BDD(Bluray disk drive) can be installed to rip CDs. Also, an external USB storage drive is automatically recognized and used to play music file.

Through the network connection, a music file in NAS or internal storage drives can be easily shared, searched and played by NFS, SMB, DLNA server or DLNA renderer features, etc. Also you can build a Multi player system with the sMS-1000SQ Eunhasu and Roon or LMS(Logitech Media Server) supportive devices. Plus, the sMS-1000SQ Eunhasu allows streaming Qobuz, TIDAL or internet radio easily, so that anyone can enjoy high quality sound with the sMS-1000SQ Eunhasu.

Simply, the sMS-1000SQ Eunhasu is a state-of-the art music server as well as player based on solid high technology. With the standard configuration, it offers extremely good sound, but with the sCLK-EX configuration, you will be able to experience the climax of sound quality produced by sMS-1000SQ Eunhasu.

Simply experience the difference and surprise with sMS-1000SQ developed by SOtM.

Features

Easy Web GUI

Roon Ready

Roon Server

MinimServer

DLNA audio rederer, OpenHome support

MPD(Music Player Daemon)

LMS(Logitech Media Server)

Squeezelite

HQPlayer Network Audio Adapter

Shairport

Multi-zone network playback

Specifications

Operating System

Linux

Audio player

Roon Ready

Roon Server

MinimServer

DLNA audio renderer, OpenHome support

Music Player Daemon(MPD)

Logitech Media Server(LMS)

Squeezelite

HQplayer Network Audio Adapter

Shairport

Audio feature

Supports PCM 32bit/768KHz max, DSDx512 max

Upsampling up to PCM384KHz

Ultra Low Jitter Clock

Ultra Low Noise Regulator

Active Noise canceller

USB output model

Audio grade USB 3.0 port (tX-USBexp)

External power input jack

USB port power on/off switch

USB audio class 2.0 support

Digital output model

AES/EBU, Coaxial, Optical output

Supports 24bit/192KHz PCM max

Analog output model

Balanced output voltage : 1.9Vrms

Unbalanced output voltage : 0.95 Vrms

Supports 32bit/192KHz PCM max

THD+N : 0.005% > @ 1KHz

Output band width : -3dB@100KHz

Option for Ultra low jitter clock

sCLK-EX for mainboard, tX-USBexp, digital output, analog output board

sCLK-XXXX for tX-USBexp only

Standard Storage

64G SSD for OS

Optional data storage

max.8TB HDD or max.2TB SSD

Power requirement

Input Voltage : +19Vdc

Power : Max 60W

Operating environment

Operating temperature : +10 ~ +30℃

Storage temperature : 0 ~ +40℃

Operating & storage humidity : 10% ~ 90%

Dimension

360×68×240(mm)

Weight

4Kg >
