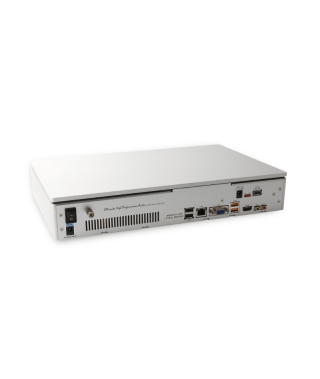

SOtM sMS-1000SQ Windows Edition Music Server / Player

The sMS-1000SQ Windows Edition is a new kind of music server based on Windows OS instead of the original Linux OS based sMS-1000SQ.

Compared to Linux based music servers, diversified compatibility and program support, user friendly operation and such convenient functions have ensured the wide popularity of Windows OS based music servers.

After a longer period of research and testing, SOtM proudly announces the first of our Windows OS based servers which are significantly better than any existing Windows OS based servers on the market, SOtM’s sMS-1000SQ Windows Edition is unequaled and capable to deliver the best sound quality today.

Here are the key points of why the sMS-1000SQ Windows Edition is so special,

First, in order to fundamentally enhance the already great sound quality of the sMS-1000SQ, we chose to use the award-winning AudiophileOptimizer from Switzerland based Highend-AudioPC.

The AudiophileOptimizer is gaining popular favor from audiophiles around the world. It is installed as the first piece of software to ensure the best sound quality possible. The Audiophile Optimizer specifically optimizes the Windows OS with only one goal in mind, to reproduce the highest sounds quality possible. In short, SOtM sMS-1000SQ Windows Edition is Windows OS purified by the AudiophileOptimizer.

Second, the users can easily obtain high quality internet streaming service via ROON and other playback software, and it can build a multi-zone network audio system configuration.

Third, the sMS-1000SQ Windows Edition can be viewed as a Windows OS device, which is specialized in obtaining high quality sound, but allows the use of all functions on Windows OS based on SOtM’s reputable Hardware performance.

Fourth, sMS-1000SQ Windows Edition uses tX-USBexp as the basic feature and allows external power to the USB audio port to easily upgrade to the level of sound quality.

Plus, the sMS-1000SQ Windows Edition allows the use of internet streaming services like TIDAL or Qobuz, and common music playback programs like Foobar2000 and JRiver, etc.

The sMS-1000SQ Windows Edition offers the best sound & techniques as the original sMS-1000SQ does, both sMS-1000SQ series provide the most satisfying sound quality. No matter what kinds of audio systems users may desire to build, they can enjoy fantastic sound performance with SOtM sMS-1000SQ.

Simply experience the difference and surprise with sMS-1000SQ Windows Edition developed by SOtM.

Features

Windows 10Pro with AudiophileOptimizer pre-installed and configured

Windows Server 2012 R2 with AudiophileOptimizer pre-installed and configured

Only selected high quality audio grade Windows OS hardware

Roonserver for multi zone internet streaming audio system

Various audio player application support

Video playback support

Specifications

Operating System

Windows Server 2012 R2 or Windows 10 Pro

Available audio playback software

Roon

TIDAL

Qubuz

Foobar2000

JRiver

PowerDVD

Etc.

Basic standard Storage

64G SSD

Optional data storage

max.8TB HDD or max.2TB SSD

USB output model

Audio grade USB 3.0 port (tX-USBexp)

External power input jack

USB power on/off switch

USB audio class 2.0 support

Support format : 32bit/384KHz PCM, DSD

Digital output model

AES/EBU, Coaxial, Optical output

Support format : 24bit/192KHz PCM

Analog output model

Balanced,Unbalanced output

Balanced output voltage : 1.9Vrms

Unbalanced output voltage : 0.95 Vrms

Support format : 32bit/192KHz PCM

THD+N : 0.005% > @ 1KHz

Output band width : -3dB@100KHz

Power requirement

Input Voltage : +19Vdc

Power : Max 60W

Operating environment

Operating temperature : +10 ~ +30℃

Storage temperature : 0 ~ +40℃

Operating & storage humidity : 10% ~ 90%

Dimension

360×68×240(mm)

Weight

4Kg >
