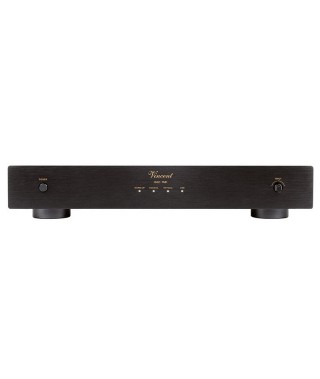

Vincent DAC-1MK Digital-To-Analog Converter

DAC-1MK - Digital-To-Analog Converter

The DAC-1MK converts digital music files with a max sample rate of 32 bit / 384 kHz (DSD). The core is the ES9038 decoder, which processes the signal fully balanced to the analog section.

Successor to the DAC-1

With the DAC-1MK, Vincent Audio has further improved their excellent sounding DAC-1. This latest model supports DSD (Direct Stream Digital) formats and digital signals with a maximum resolution of 32 bit / 384 kHz via the USB input. Via the optical and coax inputs, the DAC-1MK can process digital signals with a max. resolution of 24 bit / 192 kHz.

The digital signal is internally converted by the ES9038 decoder and processed fully balanced afterwards. To get the best possible sound quality, Vincent has built the DAC-1MK with only the highest-quality parts produced by well-selected manufacturers such as WIMA and Nichicon.

Clean, Powerful Sound

As seen on the DAC-7, a converter from the tubeLine range, Vincent has integrated a transformer with double winding in the power supply. One winding is exclusively for the analog part of the unit, another winding is used only for the digital part of the unit. Both parts get the optimal power and it also minimizes parasitic coupling. This improves the dynamics of the signal passing through and results in a crystal-clear analogue reproduction of the original digital signal.

Power Control

With all your Vincent appliances working together in harmony, controlling them all is painless with the “Power Control” connections on the rear. These allow the DAC to respond to turn-on/off signals from other devices in the signal chain.

What's in the Box?

- DAC-1MK Unit

- Stereo RCA Cable

- USB Cable

- Power Cable

- Power Control Cable

- User Manual

About Vincent

Vincent is a German brand and manufacturer of Class-A Hi-Fi equipment. SInce 1995, Vincent has stood for continual development to 2-channel stereo in the high-end class.

powerLine

Vincent is committed to two-channel stereo for its high-end products. One of their primary design approaches, which takes advantage of hybrid tube/transistor technology, is the powerLine range of components. Vacuum tubes deliver the classic “tube sound,” but solid-state circuitry in the output stage provides enough power to drive even the most demanding

Features

High-quality digital signal converter

Successor to the excellent-sounding DAC-1

Digital Coax, Optical, and USB inputs

Input select on the front of the unit

32 Bit / 384 kHz (DSD 256) sampling rate via USB input

24 Bit / 192 kHz (DSD 64) sampling rate via coax & optical inputs

Stereo RCA and balanced XLR analog outputs

Made with high-quality parts and featuring the ES9038 decoder

Specifications

Sampling Rate Coaxial, Optical: PCM 24 Bit / 192 kHz (DSD 64)

Sampling Rate USB: PCM 32 Bit / 384 kHz (DSD 256)

Frequency Response: 20 Hz – 20 kHz (+/-0,5 dB),

Total Harmonic Distortion: <0.0004 %

Signal-To-Noise Ratio: >95 dB

Dynamic Range: >100 dB

Audio Output Voltage: 2.5 V

Channel Separation: >90 dB

Max. Power Consumption: 35 W

Inputs: 1 x USB, 1 x Optical, 1 x Coax, 3.5mm jack power control

Outputs: 1 x Stereo RCA, 1 x Stereo XLR, 3.5mm jack power control

Playable Formats: MP3, WMA, AAC, AAC+, ALAC, FLAC, APE, WAV, DSD

Colour: Black/Silver

Dimensions: 430 x 79 x 343 mm

Weight: 5.5 kg
