Lumin P1 Network Player

The Lumin P1 is a streaming DAC with analog and digital inputs. It incorporates a lossless volume control, and has the dual FPGA femto clock from their flagship streamer, the X1. This is Lumin's most versatile product yet.

Call it an audio hub, or a digital preamp, or a preamp with a DAC. The Lumin P1 is capable of serving multiple roles in an ever-evolving high-end audio system. It can function as a high-end digital transport for an external DAC. Or, use it as a digital source for a preamp or integrated amp. With onboard high-quality LEEDH volume processing, it can even be connected directly to a power amp.

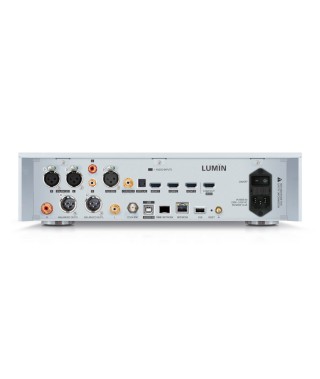

With one XLR and one RCA stereo input, you can integrate a turntable or other analog source. Also, the P1 features HDMI passthrough, allowing it to integrate with home cinema systems.

Feature Rundown

9 digital & analogue inputs

USB digital audio input & output support up to Native DSD512

Balanced & unbalanced analogue inputs

SPDIF & AES input support up to 192/24 & DoP

HDMI 2.0 inputs & 4K passthrough with ARC support

Specified for exceptional musical performance:

New processor delivers native DSD512 & PCM384 playback

Dual Mono design throughout maximises channel separation

Dual ES9028PRO SABRE DACs in Mono mode

Femto Clock System with precision FPGA distribution

New integrated dual-toroidal linear power supply & all-in-one chassis

Fibre Network provides complete isolation from network digital noise

Leedh Processing lossless volume control

LUMIN P1 takes many flagship features from the outstanding LUMIN X1:

Fiber Networking

Immensely popular on the X1, optical networking provides complete isolation from network noise. Additionally, dual network ports mean that you can connect LUMIN L1 or a NAS directly to P1.

Dual Femto Clock

P1 includes dual Femto crystal oscillators and our proprietary FPGA clock distribution system first debuted in X1.

Output Buffer

The fully balanced Dual Mono analogue output module including legendary Lundahl Output transformers has been keeping music-lovers happy since the original LUMIN A1.

Dual Toroidal Power Supply

The roomy P1 chassis provides space to move the X1 toroids inboard for a cleaner installation, while retaining all the benefits of separate analogue and digital circuits.

Specifications

NETWORK PLAYBACK:

Up to DSD512

Up to 384 kHz, 16–32-bit, Stereo

MQA Full Decoding

UPSAMPLING RATES & BIT DEPTHS:

DSD128 upsampling option for all files

PCM 384kHz upsampling option for all files

DIGITAL INPUT:

USB:

USB Audio Class 2 Compatible

WINDOWS 10 (Release 1703 or above) / Mac OSX or above

DoP 128 support

PCM 44.1–384 kHz, 16–32-bit, Stereo

AES/OPTICAL/SPDIF:

PCM 44.1 kHz–192 kHz, 16–24-bit

DSD64 (DoP64, DSD over PCM)

HDMI X3:

PCM 2.0 Audio support

4K Video Passthrough

DIGITAL OUTPUT:

USB:

Native DSD512 support

PCM 44.1–384 kHz, 16–32-bit, Stereo

BNC SPDIF:

PCM 44.1 kHz–192 kHz, 16–24-bit

DSD64 (DoP64, DSD over PCM)

HDMI X1:(HDMI PASSTHROUGH AND ARC SUPPORT)

PCM 2.0 Audio support

4K Video Passthrough

ARC (Audio Return Channel) support

ANALOGUE INPUT:

RCA Unbalanced x1

XLR Balanced x1

ANALOG OUTPUT:

Dual ESS SABRE32 ES9028Pro DAC chips

Fully balanced layout with high-quality components

Output connectors coupled with dual LUNDAHL LL7401 output transformers

Femto Clock System with precision FPGA distribution

OPTICAL NETWORK:

Industry-standard SFP

1000Base-T Gigabit Ethernet

Adapter may be needed for your particular switch/cables

Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

POWER SUPPLY:

Internal dual-toroidal

Separate digital & analogue circuitry

Low-noise linear regulator

PHYSICAL:

FINISH:

Black anodised aluminium

Raw aluminium

LUMIN (SOLID ALUMINIUM CHASSIS):

350mm (W), 380mm (D), 107mm (H), 12kg

Specification for all LUMIN music streamers

Streaming Protocol:

UPnP AV protocol with audio streaming extension (OpenHome)

Roon Ready

Spotify Connect

Flac lossless Radio stations

AirPlay-compatible

Gapless Playback

On-Device Playlist

App Features:

Native support for TIDAL, MQA, Qobuz and TuneIn Radio.

Tidal MQA icons to identify high-res music

Qobuz high-res icons to identify high-res music

Volume control

High-resolution artwork

Artwork caching

Search

Multiple tag handling

Composer tag support

Album-grouping in playlist

Automatic internet links to artists/album/songs

Saving and restoring of playlists (including Tidal and Qobuz)

Supported Audio File Formats:

DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)

PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF

Compressed (lossy) Audio: MP3, AAC (in M4A container)

MQA

Input:

Gigabit Ethernet Network (1000BASE-T) RJ45

Shared USB port can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

Analogue Audio Outputs:

XLR balanced, 6Vrms, pin 2 Hot

RCA unbalanced, 3Vrms

Supported Control Devices:

All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.

Android devices. Android 4.0 (Ice Cream Sandwich) or later required

Other:

Leedh Processing lossless digital volume control

Programme of Continuous Development – Firmware-upgradable for further features and enhancements
