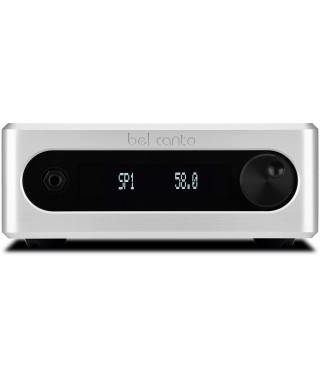

Bel Canto e.One DAC2.8 DAC Control Preamplifier

Incredible audio performance, features and flexibility, the DAC2.8 is musically open, detailed and natural sounding. HDR Core is the result of 25+ years of engineering to refine the digital to analog process and is comprised of 3 major components: Low Noise and Ultra Low Noise Master Clocks, Advanced Asynchronous Interfaces and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every e.One DAC and Integrated product, creating the most realistic, open and defined musical experience possible.

Built In Headphone Output

This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.

Easy To Use

Designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The programmable 8 character display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.

Asynchronous Input

24/192 Asynchronous input works with the internal dual Ultra Low Noise Femtosecond clocks to provide unprecedented audio sound quality and impact from your computer audio sources.

Features

Class Leading 124dB Dynamic Range

24 Bit Volume Control

24/192 Asynchronous USB 2.0

Analog Input

5 Asynchronous Digital Inputs

High Current Headphone Output Driver

Remote Control

Available in Black or Silver Faceplate

Specifications

Digital Section:

Maximum Data Input Rate:

24bit Data at 192KS/s: AES XLR, SPDIF BNC/RCA, TOSLINK, USB

Master Clock jitter: 70 femtoseconds RMS, 100Hz-1MHz

Analog 24/192 DAC Section:

Maximum Output: 4.4Vrms balanced XLR, 2.2Vrms RCA

Output Impedance: 200 ohms balanced XLR, 100 ohms RCA

Frequency Response: 20 Hz-20 KHz, +/- 0.5dB

THD+N <0.0015%, 4Vrms balanced out, 1KHz

Output Noise: 3.3uVrms A-weighted 20Hz-20KHz

Dynamic Range: 124dB A-weighted 20Hz-20KHz

Analog 24/192 ADC Section:

Maximum Input: 2.5 Vrms RCA

Input Impedance: 12K ohms RCA

THD+N: 0.003%, 2.5Vrms in, 1KHz

Dynamic Range: 110dB, A-weighted 20Hz-20KHz

Headphone Section:

Headphone Output Current and Voltage Level: 300mA peak at 4Vrms

Maximum Output: 138mW

THD+N: 0.01% 35mW, 1KHz

Output Noise: 17uVrms, A-weighted 20Hz-20KHz

General:

Power Usage On: 7W

Power Usage Off: : 0.0W

Power Requirement: 100-120VAC, 220-240VAC 50/60 Hz

Dimensions: 8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm)

Weight: 14lbs. (6.5 kg)

Features and specifications are subject to improvements and changes without prior notice.
