Silent Angel Munich MU Network Streamer

The Munich MU is a high-end network streamer, advancing the formidable capabilities of the iconic M1. The development of a sophisticated, double-layer chassis design inspired by our State-of-the-Art Bonn NX and Genesis GX combined with meticulous fine-tuning and relentless testing, complemented by specialized system software, every effort has been devoted to creating an unmatched digital audio experience.

Featuring both XLR balanced and RCA (single-ended) outputs, coupled with an integrated ESS SABRE DAC, Munich MU delivers reference-grade analog sonics. Simply connect MU to your amplifier or active speakers and instantly elevate your audio system to a true high-end HiFi audio experience.

Versatile Audio Source with Expandable DAC connectivity via USB Audio port for rich high-definition digital output, meeting diverse connection needs. Enhanced with advanced lossless audio transmission for unparalleled sound quality.

Munich MU offers superior structural integrity compared to welded sheet metal enclosures, providing enhanced resonance damping and better electromagnetic interference isolation, thereby ensuring pristine audio quality.

Leading Music Streaming Platforms Embedded, Offering MQA Audio Decoding and Seamless Access to High-Quality Online Music Content through Various Sources Including Qobuz, Spotify Connect, DLNA, Airplay2 and Internet Radio.

Features

High-performance streaming with a 6-core processor for unmatched stability and speed.

Precision EMI interference absorption technology for the purest sound quality.

Supports high-capacity NVMe SSD storage for extensive music libraries.

Features both XLR balanced and RCA unbalanced outputs, integrated with an ESS SABRE DAC for sublime analog audio quality.

Compatible with leading music streaming platforms, including Qobuz, Spotify Connect, DLNA, Airplay2, and Roon Ready

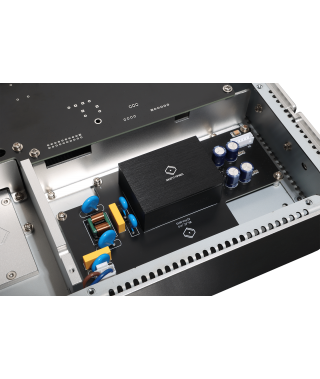

The Perfect Digital Circuit, Engineered to Minimize Noise in Digital Signals.

Utilizing Unique Shielding Technology to Isolate Interference Between Digital and Analog Circuits.

Premium Audiophile-Grade Audio Components.

Carefully Selected Audiophile-Grade Electrical Components Deliver Exceptional Sound Quality.

Precision EMI Interference Absorption Technology.

Ultimate Suppression Achieved Through Relentless Testing and Optimal Device Positioning.

High-Precision Clock Adjustment with Independent Circuitry.

High-Precision TCXO Clock Fine-Tuned Surrounding Power Circuitry to Femtosecond Levels.

External 10MHz Clock Input.

Specifications

Available Color Black, Silver

Ethernet 1 GbE RJ45 x 1

Management System VitOS Orbiter (for iOS, Android)

LED Indicator Red, green, and blue lights flash in sequence > System booting

Blue light remains steady > Startup process completed

Blue light stays steady > Standby mode

Red light blinks > Mute mode

Green light blinks > PCM output format

Blue light blinks > DSD output format

Music Format AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD (DSF, DFF), WAV64, AIFF, CUE Files, WMA, APE

Digital Outputs AES/EBU port x 1

I2S port x 1*

Coxial port x 1

- Supports up to PCM 384KHz and DSD 5.6M (DSD128)

* I2S output signal is not compatible with Holo Audio's DAC

USB Audio USB Audio port x 1

- Supports up to PCM 768KHz and DSD 11.2M (DSD256)

Analog Output Balanced XLR Outputs, Unbalanced RCA (L+R) Outputs

USB external storage USB 3.0 x 2

USB 2.0 x 1

External Clock Input Port 10MHz x 1

CPU Dual-core Cortex-72, frequency 1.8GHz +

Quad-core Cortex-A53, frequency 1.4GHz

RAM Low-Noise 4GB

Firmware and System High-Speed 32GB

SSD Storage M.2 NVMe SSD (2280) Reserved, Up to 4TB, This product does not include a hard drive.

Chassis Material Aluminum alloy material sandblasted anodized appearance, Double-layer casing isolation design.

Dimensions 360(W)*73(H)*220(D)mm

12.45(W)*1.95(H)*6.97(D)inch

Weight 4.65KG (10.25 lb)

Package Player, Power cord, Network cable, Quick install guide, Warranty card.
