Nordost Heimdall 2 Ethernet Cable

The Heimdall 2 Ethernet Cable allows hifi enthusiasts to integrate Network Attached Storage (NAS) devices and music streaming into their hifi systems, while simultaneously improving the sound quality. Nordost has developed a unique design that allows its cable to surpass industry standards. The Heimdall 2 Ethernet Cable consists of eight 23 AWG polymer insulated conductors, arranged in four individually shielded, twisted pairs, which are then wrapped in braided, silver-plated copper shielding, and encased within a high-density polymer insulation. This fully shielded cable construction virtually eliminates the crosstalk and electromagnetic interference (EMI) that has always afflicted previous network cables.

To additionally enhance the performance of their new Ethernet Cable, Nordost has implemented mechanical tuning in order to reduce internal microphony and high frequency resonance. The precise cut of each conductor also ensures the uniform arrival of all signals, dramatically reducing timing errors. The resulting cable can support frequencies of 1000MHz and transmission speeds of up to 40Gbits/second, offering far more bandwidth than is needed for the typical data demands of today. To complete its excellent build, the Heimdall 2 Ethernet Cable is terminated with a completely shielded and ruggedized 8P8C/RJ45 connector designed to further resist EMI and Electro Static Discharge (ESD).

The Heimdall 2 Ethernet Cable is designed, manufactured, and terminated in the USA. Each cable is constructed with the quality of fabrication, precision and consistency needed to ensure a guaranteed improvement over standard issue, mass-produced, low precision Ethernet cables.

Specifications

Insulation:   High-Density Polymer

Construction:   Mechanically tuned length, Screened Foiled Twisted Pair Design (s/ftp)

Conductors:   8 x 23 AWG

Material:   Solid core copper conductors

Overall Shield Coverage:   Fully Shielded Dual Braid

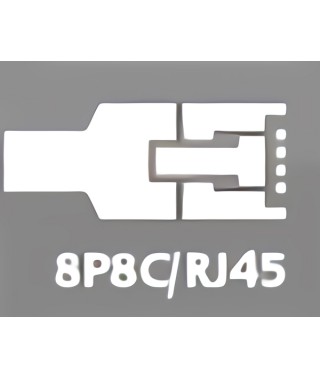

Termination:   Shielded, Ruggedized 8P8C/RJ45 connectors
