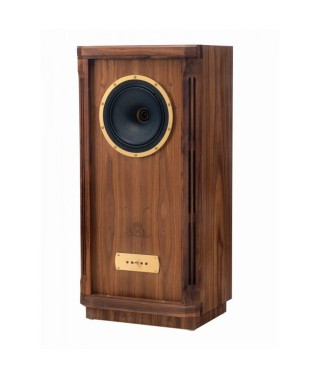

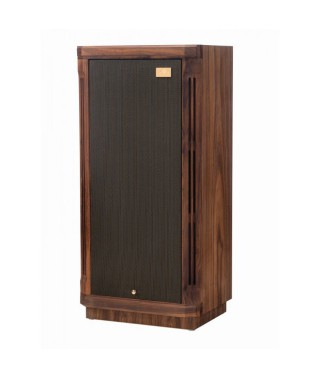

Tannoy Prestige Turnberry GR Floorstanding Speakers

Overview

• 2 way floorstanding loudspeaker for medium to large sized rooms
• Dual Concentric driver technology provides class-leading coherence and point-source imaging
• 10" highly efficient driver with 93 dB/Watt sensitivity and 400 Watt peak power handling deliver breath-taking dynamics and realism
• Tulip Waveguide with 33mm aluminium-magnesium dome enhances the point source symmetrical dispersion properties, providing exceptional high frequency clarity and articulation
• Low frequency paper pulp cone with twin roll fabric surround provide natural sounding midrange and bass transient performance
• Handcrafted oiled walnut veneered cabinet with walnut inlays provides a unique and timeless piece of furniture
• Capacitors, low loss laminated core inductors and close tolerance wirewound resistors delivering a more natural and cohesive sound
• Custom gold plated bi-wireable binding posts to improve signal transmission and integrity
• Fifth binding post provides grounding to reduce radio frequency interference and improve midrange clarity
• High density particle board cabinet provides extreme rigidity to control low frequency performance
• Distributed Port system gives powerful and extended low frequency performance
• Extensive bracing incorporating DMT (Differential Materials Technology) to couple drivers to cabinets
• Precision machined gold anodised aluminium adjustment panel metal trim complements the aesthetic of the real wood cabinet
• Specially formulated Prestige wood wax provided to keep cabinet in pristine condition

The 250 mm (10 inch) Gold Reference Dual, unique to the Turnberry GR, uses a new paper pulp cone material with HE twin roll fabric surround and 1.3 in aluminium-magnesium alloy dome tweeter with Tulip WaveGuide. The low frequency cone is fitted with a new 50 mm (2 inch) edge wound voice coil. This latest evolution of the 250 mm (10 inch) Dual brings an even more thrilling and dynamic performance than its well-regarded predecessor.

The high power crossover is hand-built on a dedicated crossover board using the finest sounding components and full Deep Cryogenically Treated to improve crystal structure of the conductor throughout the circuit. The result is a rich and articulate sound with remarkable sound staging and all the cohesive musicality of a true point source transducer. The Turnberry GRs High Frequency power controls can tailor the listening experience without introducing any potential distortion than can result of using an amplifiers tone controls.

The Turnberry GR cabinet is hand built from the finest plywood using traditional joinery methods to ensure that attention to detail and unique styling go hand in hand. A distributed port design for exemplary LF response from the 85 litre enclosure, the cabinet is finished in Prestige oiled real walnut wood veneer and complimented with solid walnut trim and edging, machined metal trim and adjustable HF power.

Capable of handling peak input power of up to 340 watts and boasting prodigious 91 dB efficiency, the Turnberry GR has the power and authority of much larger and more affluent loudspeakers. It is detailed, dynamic and outstandingly articulate sound with all the musical cohesion inherent with the Dual Concentric driver. Turnberry GR offers the bespoke cabinetry and remarkable performance of TANNOYs Prestige series, yet costs no more than a typical mass produced loudspeaker.

Performance

• Recommended amplifier power               20 - 200 Watts
• Continuous power handling                     100 Watts RMS
• Frequency response                               34Hz - 44kHz -6dB
• Sensitivity                                                93dB (2.83 Volts @1 metre)
• Nominal impedance                                  8 Ohms (Min 5 Ohms)

Drive Units

• Dual Concentric high frequency              33mm (1.30") aluminium alloy dome with Tulip Waveguide
• Dual Concentric low frequency               254mm treated paper pulp cone with HE twin roll fabric surround. 52mm edge wound voice coil
• Dispersion                                                90 degrees conical

Crossover

• Frequency                                                1.3kHz
• Type                                                          Bi-wired, hard wired passive, low loss 2nd order low pass, 2nd order high pass
• Adjustment                                                +/- 3dB over 1.3kHz to 44kHz shelving

Construction

• Enclosure type                                          Dual Distributed Port
• Volume                                                      100L (3.5 cu.ft)
• Dimensions                                               950 x 456 x 336mm (37.50 x 18.00 x 13.25)
• Weight                                                      30kg (66 lbs)
• Finish                                                        Walnut veneer with solid walnut trim and edging. Internally cross braced and heavily damped.

TANNOY

• 90 years of British sound heritage and innovation
• 10-Year Warranty Program*
• Designed and manufactured in the U.K.
