Tannoy SGM 12 Floorstanding Speakers

Embrace the Warmth

The SUPER GOLD 12 speakers feature 12” woofers that ensure warmth coupled with a detailed soundscape. They are a match made in heaven if you listen to Orchestral Music, Rock, Pop, Blues or Soul. That said, they are perfectly capable of generating goosebumps when you listen to Jazz, R’n’B, Heavy Metal or anything in between.

Dual Concentric Precision

We invented the dual concentric speaker design in 1947, and it has been refined and improved continuously over the decades. With SUPER GOLD you get the very latest incarnation of this pristine design that has won critical acclaim over and over for nearly 70 years!

With our Dual Concentric design, the woofer and tweeter are literally merged together, which positions them on the exact same axis, giving you best-in-class phase coherence. Since the sound is coming from the same point, it is a true point-source imaging scenario, and adding to that a spherical wave front that ensures an extremely even dispersion both vertically and horizontally, the SUPER GOLD’s off-axis performance is breathtaking.

But what is the benefit when listening? You simply get a very wide and true sweetspot, which means that you don’t have to sit dead-center in front of the speakers to enjoy every single, subtle detail in the music. You can move around, or when you have company, everyone can enjoy listening even if they are not directly in front of the speakers.

Finally, we constantly refine and improve our dual concentric design, and today we use modern ferrite with copper demodulation rings and high flux magnetic circuit, which perform even better than the original 1970’s Alnico design.

Specifications

Frequency response: 38 Hz - 30 kHz ± 6 dB

Recommended amplifier power: 20 - 250 W

Power handling (IEC): 125 W continuous, 500 W peak

Sensitivity: 91 dB (1 W @ 1 m)

Impedance: 8 Ω

Low frequency dual concentric: 1 x 12" (300 mm) paper pulp cone with twin roll impregnated fabric surround, 52 mm (2") edge wound voice coil

High frequency dual concentric: 1 x 1.3" (33 mm) aluminium / magnesium alloy dome with edge-wound voice coil

Frequency: 1.2 kHz

Type: Bi-wired, hard wired passive, low loss 2nd order low pass, 1st order high pass

Adjustment: ±3 dB over 1 kHz to 30 kHz shelving,

2 dB to -6 dB per octave

over 5 kHz to 30 kHz slope

User controls: treble roll off, treble energy

Type: Twin distributed port

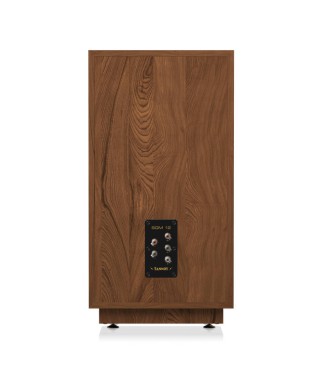

Connectors: 5 x 4 mm 24ct Tannoy customized binding posts

Dimensions HWD: 447 x 308 x 863.3 mm (17.6 x 12.1 x 40")

Net weight: 29.4 kg (64.8 lbs)

Construction: 19 mm (3/4") Particle Board, MDF with plywood internal bracing - heavily damped

Finish: Walnut veneer and high acoustic transparency nylon grill cover
