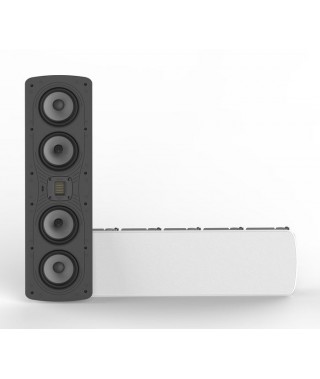

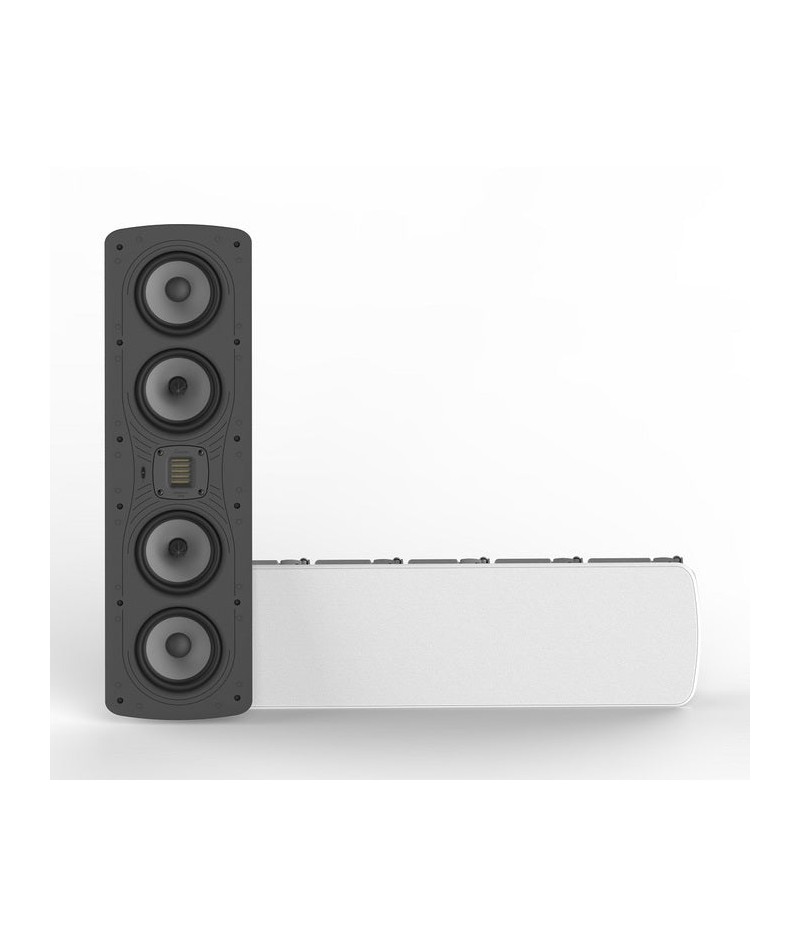

GoldenEar Invisa SPS In Wall Speaker

A tremendous amount of work has gone into the acoustical engineering of the Invisa Series Ceiling Speakers / In Wall Speakers in order to deliver the highest sound quality possible in an architectural format. All models (except the 600) incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa SPS in-wall SuperSpeaker™ is the perfect anchor for a high-end music and/or home theater system, utilizing GoldenEar’s latest Triton Reference speaker technology. All ceiling speakers/in-wall models have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality.

The Invisa Signature Point Source is intended for use as a main front left, right or center channel loudspeaker, as well as a side or rear surround, in high quality multi-channel home theater and music systems, as well as in simpler two channel systems of the highest quality. It presents a compact 28-3/16” x 8-9/16” fascia, and, of course, is of a proper depth (3-1/4” without optional backbox, 3-3/4” with) to allow it to easily fit, into a standard wall depth. Each Invisa SPS incorporates four 5-1/4” high-definition cast basket drivers, which are very similar to those found in the award-winning Triton Reference. The Invisa SPS also incorporates an extraordinary Triton Reference High-Gauss, High Velocity Folded Ribbon Tweeter. The complex crossover network utilizes the special fully balanced topology incorporated in our upper range models, with a special polystyrene film capacitor on the high frequency section. The drivers are wired with special wire which has a unique twist that was engineered for highest performance.

The four 5-1/4” drivers are not identical, nor do they cover the same frequency range. In order to achieve a point source radiation pattern, with the dramatic benefits of better dispersion and improved imaging, the outer two drivers have their upper range limited to 500 Hz., while the two inner 5-1/4” drivers go all the way up to 3 kHz in order to meet and blend perfectly with the tweeter. All this is precisely accomplished by the complex balanced crossover network. Other small, but important details include: a switch to allow adjustment of the tweeter level, a magnetically attached low profile grille, non-resonant mineral-filled frame structure, special dogs to allow easy and secure attachment to the wall, and a rotatable tweeter to allow for correct orientation of the tweeter for vertical or horizontal positioning. There is a unique optional backbox available, that has been engineered with special EVA damping foam internally and open-cell foam externally to prevent bleed though of sound into the adjacent room

High-Gauss Neodymium Reference High-Velocity Folded Ribbon (HVFR) Rotatable Tweeter (Invisa SPS)

Tweeter Diaphragm is a High Temperature Film

50% Larger High-Power Neodymium Magnet

Squeezes/Pressurizes Air Instead of Pushing It

Greater Control, Smoother More Extended Response

Vanishingly Low Distortion

Dramatically Improved Dynamic Range and Detail

Dispersion Control with Rotating and Aiming Tweeter Assembly

5.25" High-Definition Bass/Midrange Drivers (Invisa SPS)

GoldenEar Multi-Vaned Phase Plug (MVPP) Design (Inner Drivers)

Rigid Free-Flow Cast-Basket Chassis

Proprietary Computer Optimized Cone Topology

High-Gauss Focused Field™ Magnet Assembly

1˝ High-Temperature Kapton Former Voice Coil

Extremely Extended Resonant-Free Linear Frequency Response Characteristics

Specifications

Speaker Dimensions - 27-9/16" (70 cm) H x 7-15/16" (20.2 cm) W x 3-1/4" (8.25 cm) D , With Optional Back Box 3-3/4" (9.5 cm)

Square Grille Dimensions - 28-5/16" (71.59 cm) H x 8-9/16" (21.74 cm) W

Cutout - 26-9/16" (67.43 cm) x 7-3/16" (18.25 cm)

Weight - 6.4 kg

Frequency Response - 25 Hz – 35 kHz

Efficiency - 92 dB

Nominal Impedance - Compatible with 8 ohms

Driver Complement - Two 5.25" (13.33 cm) high-definition cast-basket MVPP™ mid/bass drivers, Two 5.25" (13.33 cm) high-definition cast-basket lower mid/bass drivers, One High-Gauss HVFR™ High Velocity Folded Ribbon tweeter

Recommended Amplification - 20 - 350 watt/channel
