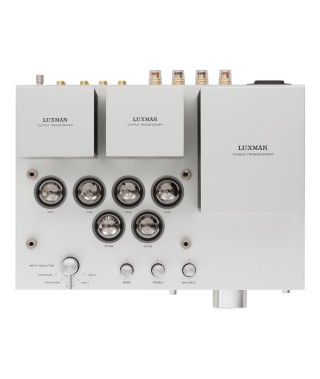

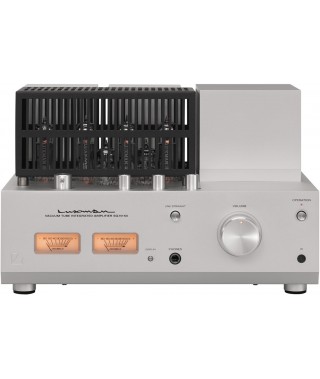

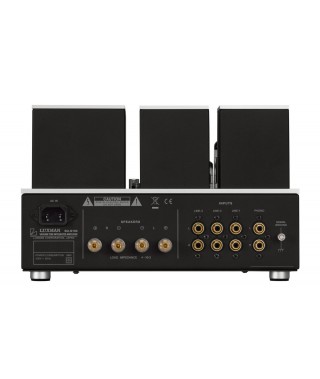

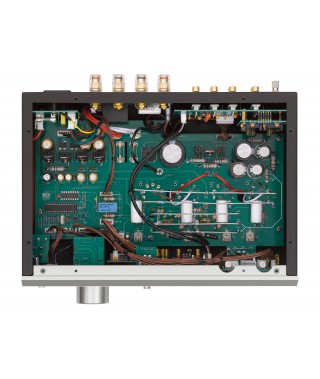

Luxman SQ-N150 Vacuum Tube Integrated Amplifier

Versatile preamplifier
LUXMAN provides three line inputs and a phono section that accommodates both moving magnet and moving coil cartridges, so you don’t need to purchase a separate MC preamp. We plated the RCA jacks in gold and pitched them at 18 mm to accommodate high-end cables. For minimum crosstalk between left and right channels, we used the same input selector IC as on our top-of-the-line C-900u control amplifier. For ultimate sonic purity, the Line Straight mode can bypass the Bass, Treble and Balance controls. The headphone output jack is ideal for late night listening.

Remote control
The aluminum-finished remote control operates volume as well as a LUXMAN CD player, such as the matching LUXMAN D-N150 digital player.

Elegant design
The 5 mm thick aluminum chassis has a modest “A4” footprint, just 210 x 297 mm (8-1/4 x 11-3/4 inches), not including projecting parts. The blasted white inish contrasts nicely with the hairlines on the machined aluminum controls. The orange LED lighting of the analog level meters provides a visual counter-point to the glow of the vacuum tubes.

Specifications

Rated output: 10W+10W(6Ω)
Input sensitivity/
input impedance: PHONO (MM): 3.0mV/47kΩ
PHONO (MC): 0.33mV/100Ω
LINE: 180mV/47kΩ
Frequency response: PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 80kHz (within -3.0dB)
Total harmonic distortion: 1% or less (1kHz, 10W/6Ω)
S/N ratio (IHF-A): PHONO (MM): 84dB or more
PHONO (MC): 64dB or more
LINE: 95dB or more
Circuit Driver: P-K split phase inversion circuit
Output :Pentode power tubes
Vacuum tubes: ECC83×3, EL84×4
Power supply: 230V~(50Hz) / 115V~(60Hz)
Power consumption: 98W
External dimensions: 297(W) x 188(H) x 251(D) mm
20mm front panel knob of and 21mm rear panel
terminals are included in the depth measurement
Net weight: 12.4kg (main unit)
Accessories: Remote control (RA-25), Power cable
*Please cover the unit with the bonnet provided for safety.
