Rotel S14 Integrated Streaming Amplifier

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing the ultimate in convenience to the near limitless catalog of music delivering 150 Watts of Class AB power.

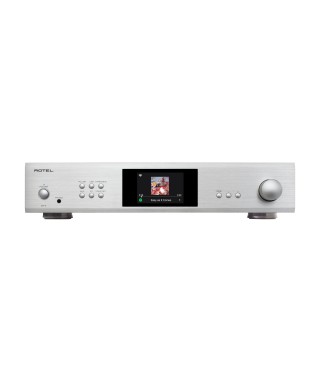

Album artwork on the front display, included remote, simple operation and intuitive setup ensures the S14 becomes the heart of your music system.

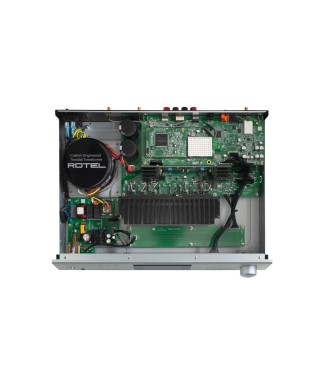

Leveraging over 60 years of design experience, the S14 delivers high performance music rendered through a 32-bit ESS Sabre digital-to-analog converter, feeding high current output transistors powered by an oversized toroidal transformer, delivering precision and control.

With the S14, users can stream music directly from popular streaming services including Spotify, Tidal, Qobuz, and podcasts as well as thousands of Internet Radio stations. Fully certified Roon Ready, AirPlay 2 and Google Cast are also supported as well as coaxial, optical, aptXTM HD Bluetooth, analogue RCA and PC-USB source inputs for legacy devices.

The all-in-one product streams music directly from popular music services, rendering the audio with precision, delivering 150 Watts of Class AB power at 4 Ohms directly to loudspeakers via 5-way binding posts and a front panel headphone connection. The S14 also comes with a newly engineered aluminium remote control for easy use in a design-forward package.

Features

Certified Roon Read

Supports MQA and MQA Studio

2 x 150 Watts of robust Class AB power,  4 Ohms

ESS premium 32-bit  Digital to Analog Converter

Wireless aptX™ HD and AAC Bluetooth

Specifications

DIMENSIONS (W × H × D)

430 × 93 × 345mm

17" × 3 5/8" × 13 1/2"

POWER REQUIREMENTS

120V, 60Hz

POWER CONSUMPTION

280W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

9.15kg (20.17lbs.)

MAXIMUM POWER OUTPUT

150W/Ch (4Ω)

CONTINUOUS POWER OUTPUT

80W/Ch (8Ω)

TOTAL HARMONIC DISTORTION

(THD)

<0.04%

FREQUENCY RESPONSE

Line Level Inputs:

10Hz - 100kHz, ±0.5dB

Digital Inputs:

10Hz - 90kHz, ±2.0dB, Max

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 100dB

Digital Inputs: 98dB

INTERMODULATION DISTORTION

(60Hz:7kHz, 4:1)

<0.03%

DAMPING FACTOR

400

INPUT SENSITIVITY

Line Level Inputs: 200mV

Digital Inputs: -20dBfs

INPUT IMPEDANCE

Line Level Inputs: 47kΩ

Digital Inputs: 75Ω

INPUT OVERLOAD

Line Level Inputs: 4.5V

TONE CONTROLS

±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS

SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 2.0 (up to 24-bit/384kHz)*

*Driver installation required

MQA and MQA Studio (up to 24-bit/384kHz )
