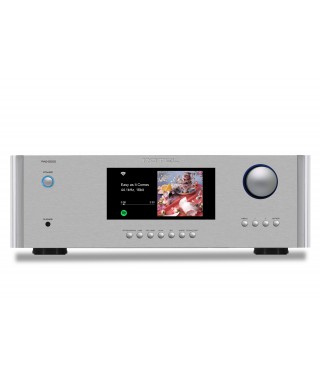

Rotel RAS-5000 Integrated Amplifier With Streamer

Simplicity and performance meet in the Rotel RAS-5000 designed to effortlessly fit into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.

Features

2 x 220 Watts of robust, Class AB power, 4 Ohms

Class AB amplifier design

ESS premium 32-bit Digital to Analog Converter

Wireless aptX™ HD and AAC Bluetooth

Includes remote control

You get an array of digital music source inputs plus an HDMI eARC port for connecting your TV. A stereo line-level input lets you hook up an analog source. No phono stage is built-in, though, so if you want to spin vinyl, you'll need a separate phono preamp.

The amplifier features a custom Rotel toroidal power supply and Class AB amplification for loads of volume and clarity. It's four-ohm stable for driving demanding speakers. Bass lovers will appreciate the mono subwoofer output to connect a powered subwoofer. Plus, there's a line-level preamp output if you want to use the RAS-5000 to feed an external amplifier.

The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.

Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.

Specifications

POWER OUTPUT

220 Watts / ch (4 Ohms)

140 Watts / ch (8 Ohms)

TOTAL HARMONIC DISTORTION

(THD)

<0.03%

FREQUENCY RESPONSE

Line Level Inputs:

10Hz - 100kHz, ±0.5dB

Digital Inputs:

10 Hz – 70k Hz, (±3 dB, MAX)

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 103dB

Digital Inputs: 105dB

DIMENSIONS (W × H × D)

431 x 144 x 425 mm

17” x 5 7/8” x 16”

FRONT PANEL HEIGHT

132.6 mm / 5 1/4”

POWER REQUIREMENTS

120V, 60Hz

POWER CONSUMPTION

380W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

15.7 kg, 34.6 lbs

BTU RATING (4Ω, 1/8th power)

1027 BTU/h

INTERMODULATION DISTORTION

(60 Hz : 7k Hz, 4:1)

<0.03%

DAMPING FACTOR

290

INPUT SENSITIVITY

Line Level Inputs: 0.78V

Digital Inputs: -8dBfs

INPUT IMPEDANCE

Line Level Inputs: 46k Ohms

Digital Inputs: 75 Ohms

INPUT OVERLOAD

Line Level Inputs: 4.1V

TONE CONTROLS

±10dB at 100Hz / 10kHz

HDMI

Support eARC function

COAX/OPTICAL DIGITAL INPUT SIGNALS

SPDIF LPCM (Up to 24-bit/192kHz)
