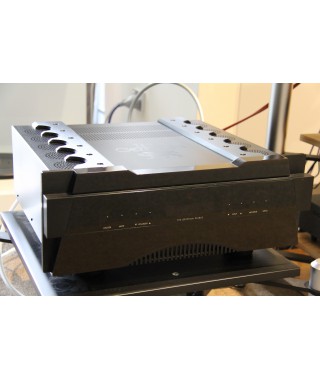

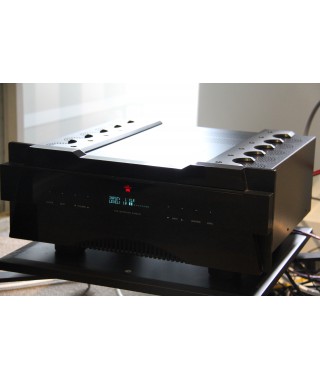

The Gryphon Diablo 250 Integrated Amplifier (Trade in)

Trade in, a few small scratches here and there. No Phono.

As the world has come to expect from Gryphon, the Diablo is a true dual mono design for minimal cross-channel interaction. The monumental, sculpted exterior conceals all the wattage you'll ever need backed up by virtually limitless current capability.

The Gryphon Diablo puts its ample power reserves at your beck and call to vividly re-create the dynamics of a live music event in your own living space. Dynamic variations, the lifeblood of music, convey the ebb and flow of emotion. The Gryphon Diablo takes you straight to the heart of the music. A bottomless source of pure, stable power, the Gryphon Diablo drives any loudspeaker with speed, precision and authority. A relaxed sense of ease, lush elegance and deep musical insight justify once again Gryphon's reputation as the true music lover's audio brand of choice.

Features

True Dual Mono configuration

Zero negative feedback

Microprocessor-controlled 50- step relay volume attenuator for best sonic performance featuring Welwyn ultra-precision resistors

Ultra-short signal path

Minimal internal wiring

Military spec. double-sided up to 105 micron copper printed circuit boards

Dual Mono Holmgren toroidal transformer

PCB-mounted sockets eliminate wiring and shorten signal path

Gold-plated Swiss Neutric XLR sockets for one balanced source

Gold-plated phono sockets with Teflon insulation for 4 inputs and 2 outputs

Fixed-level AV throughput for uncompromising integration with surround preamplifier

Vacuum Fluorescent Display with 2 lines and 50 characters

Adjustable display lighting (High, Medium, Low, Off)

Designed and built in Denmark

Specifications

2 x 250 W @ 8ohm

2 x 500 W @ 4ohm

2 x 800 W @ 2ohm

Output impedance: 0.019

Bandwidth (-3 dB): 0.1 Hz - 250 kHz

Power Supply Capacity: 2 x 58.000 microFarad

Gain: +38 dB SUB output gain: + 6 dB

Input Impedance, balanced (20 - 20,000 Hz): 20 k

Input Impedance, single-ended (20 - 20,000 Hz): 8k
