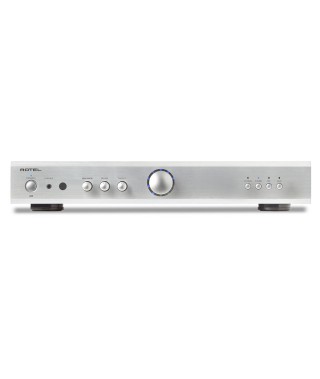

Rotel A8 Integrated Amplifier

The A8 Integrated Amplifier is the perfect fusion of power, size, efficiency, and value tailored for music enthusiasts.

Built around an in-house manufactured, high current, Rotel-crafted toroidal power transformer, the A8 delivers a commanding 40 Watts per channel of Class A/B power into 4 ohms. The high efficiency output drive transistors ensure deep bass energy is controlled with ultimate precision while comfortably maintaining composure at all listening levels.

The A8 features three line-level RCA inputs connecting your favourite analogue sources complemented by a Moving Magnet compatible Phono Stage to spin classic vinyl albums. For private listening, a front panel 1/8” headphone jack is also included.

The included IR remote ensures precise and seamless operation of the volume level and selection of the desired source input all from your favourite listening position. The remote also conveniently includes CD transport control functions supporting Rotel CD players.

Personal selection of LED volume indicator colour allows the A8 to be tailored to both mood and environment. Choose from Red, Green, Blue, or Purple LED colours fitting comfortably into any environment. Get hands-on with the front panel Bass, Treble and Balance controls to personalize the listening experience with your music.

Rear panel 5-way speaker binding posts provide the ultimate installation flexibility and connection to your loudspeakers.

Available in both stylish black and sophisticated silver variants, the A8 integrates the power, versatility, and elegance of your audio experience.

Features

2 x 40 Watts of robust power, 4 Ohms

Includes remote control

Moving Magnet Phono input for turntable connection

Class AB amplifier design

High current power supply

Specifications

Power Output 30 W/Ch (8 Ω), 40 W/Ch (4 Ω))

Total Harmonic Distortion (THD) <0.03%

Frequency Response Line Level Inputs: 10 Hz - 100 kHz (-0.5 dB, +0 dB), Phono Input: 20 Hz - 20 kHz (-0.5 dB, +0 dB)

S/N Ratio (IHF "A" Weighted) Line Level Inputs: 90 dB, Phono Input: 80 dB

Intermodulation Distortion (60 Hz:7 kHz, 4:1) <0.03%

Damping Factor 80

Input Sensitivity Line Level Inputs: 180 mV, Phono Input (MM): 2.5 mV

Input Impedance Line Level Inputs: 60 kΩ, Phono Input (MM): 40 kΩ

Input Overload Line Level Inputs: 4 V, Phono Input: 50 mV

Tone Controls ±6 dB at 100 Hz / 10 kHz

Dimensions (W x H x D) 430 x 73 x 347 mm (17" x 2 7/8" x 13 5/8")

Front Panel Height 60 mm (2 3/8")

Power Requirements 230 V, 50 Hz

Power Consumption 110 W

Net Weight 5.8 kg (12.8 lb)

BTU Rating (4 Ω, 1/8th Power) 340 BTU/h
