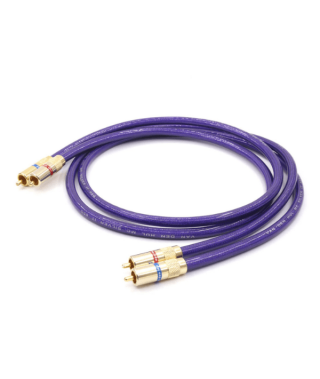

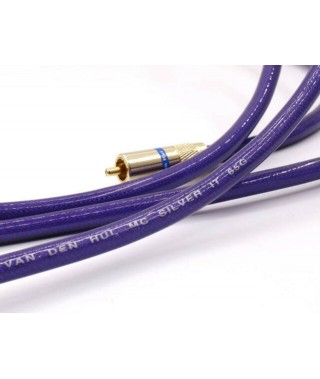

Van Den Hul The MC Silver IT 65G RCA Interconnect Cables

With the MC – SILVER IT 65 G all production handling is done with extreme care and maximum attention is paid to maintain a very constant characteristic impedance along the whole cable, as well as in the micro domain, to prevent signal reflections even up to very high frequencies.

The centre lead consists of 19 extreme high grade Matched Crystal (MC) extruded OFC strands with a very thick and dense extruded Matched Crystal (MC) purest silver coating applied in a mechanical processing step.

The diameter of this centre conductor is: 1.4 mm. and the cross-section area is 1.17 mm². The centre lead resistance is a remarkably low: 1.43 Ohm/100 m.

The typical capacitance is: 83 pF/meter.

The insulation between core and shielding is made of Teflon tape in several layers exhibiting a typically low relative dielectric constant of 1.4.

The double shielding is made of a 96 x 0.10 mm. Matched Crystal (MC) OFC wire braiding with a very thick and dense coating of very pure silver with underneath a helically overlapping wound very pure 2.5 x 0.05 mm. silver ribbon.

The external insulation is made of the special HULLIFLEX ® EHD material. This specific insulation material is too costly to be used in all our products.

MC – SILVER IT 65 G exhibits an extremely extended frequency range of 65 GigaHertz.

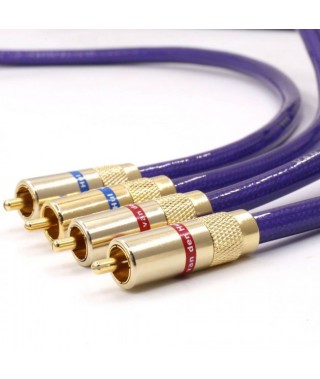

Precautions must be taken to prevent bending around a very small radius. The minimum safe value of the bending radius is 58 mm. The external diameter of the MC – SILVER IT 65 G is: 5.8 mm.; a size that perfectly matches our 5.5 mm gold RCA connector.

Specifications

Design: purpose Interlink – unbalanced

Available versions: Unbalanced (RCA)

Conductor material: Silver

Product range: Mid-range

Jacket color: purple

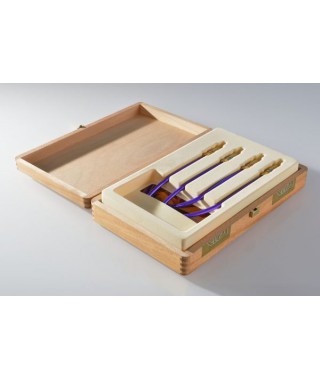

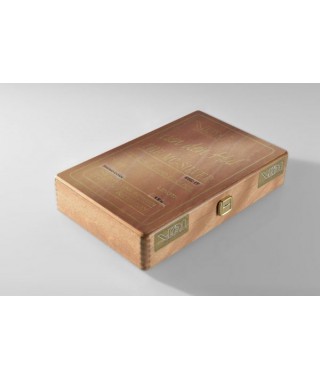

Standard sales unit: Packed in wooden box starting from 0.6m. Custom lenghts available and deliverable on reel.

Lenght: 1m

Conductor type: Silver Plated OFC
