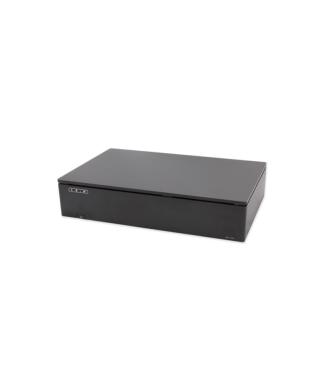

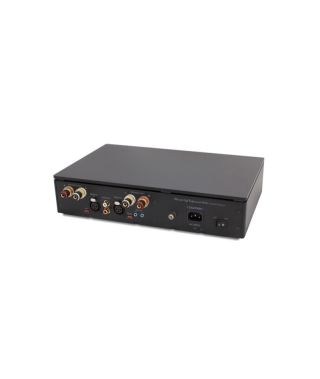

SOtM sPA-1000 Power Amplifier

A power amplifier is an essential device for configuring audio systems with its role in the process of operating the speakers. From the introduction of the vacuum tube to the establishment of the class D amplifier currently called the digital amplifier, the amplification technology for amplifiers has dramatically evolved.

Although some believe that digital amplifiers are insufficient as high-end audio devices, based on SOtM’s unique technologies, the sPA-1000 will be the one that can break this bias.

Since we designed the Class D amplifier module for the sPA-1000, which is not like most Class D amplifiers that use the ready-made modules by a few amplifier module companies, it means that the sPA-1000 is inherently different from others, and can outperform them.

In particular, the sPA-1000 uses power stabilization technology (pumping reducer technology) on the power circuit which removes the power pumping phenomenon – when playing music on the speaker, the electromotive force is generated and it changes the power voltage-, and with this special power circuit, the sound can become more natural and bring out more details. Most of all, you can play music with very precise low and mid-high ranges.

In addition, from the input stage to the speaker output stage, a fully balanced circuit has been applied to withstand the noise from inside and from outside the product.

Such special technologies applied to the sPA-1000 are the great advantage of products which are barely found in any other D class amplifier. These techniques will give you a chance to get closer to the essence of music by clearly expressing the nuances of the performers’ playing.

The SOtM’s Ultimate products are completed with a simple and modern design that have been verified through multiple design awards, the full ultimate system can be perfectly composed to enjoy the best sound with perfect shapes.

Features

Ultimate Stereo power amplifier

Full balanced Class D Amplifier

Balanced Unbalanced Input

Specifications

User interface

Operating indicator LED x1

Standby switch(Front panel)

AC power input on/off switch(Rear panel)

Analog input

Unbalanced input x1

Max input voltage 2Vrms

Input impedance : > 10kΩ

Balanced input x1

Max input voltage TDB

Input impedance : > 10kΩ

All balanced circuit

High end audio grade component

Amplifier output

Custom design class-D amplifier

High precision amplifier power regulator

Power supply active noise canceller

Channels : 2 (Bridge tied load)

Power output : 200W@4 ohm / channel

Frequency response : 20 ~ 40KHz

THD+N : 0.05% > @ 1W, 8 ohm

SNR : TBD

Dynamic range : TBD

Input sensitivity : TBD

Output short protection

Over temperature protection

Trigger in/out

3.5mm audio jack in/out

12V/0.2A max

AC power input

Voltage : 220Vac ~ 240Vac / 100Vac ~ 120Vac

Frequency : 50Hz / 60Hz

Current : 3A / 6A

High current toroidal power transformer

Operating environment

Operating temperature : +10 ~ +30℃

Storage temperature : 0 ~ +40℃

Operating & storage humidity : 10% ~ 90%

Dimension

360 x 84 x 255(mm)

Weight

7.5 Kg >
