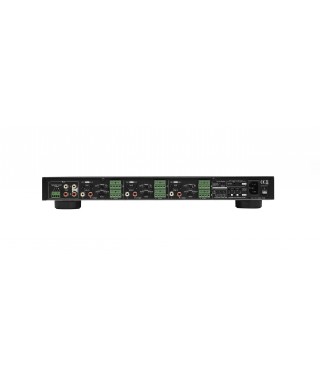

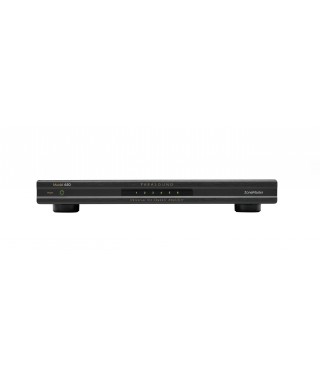

Parasound ZoneMaster 650 6 Channel Power Amplifier

The ZoneMaster650 high-performance amplifier in Parasound’s ZoneMaster™ line combines legendary Parasound Class AB sound quality with the most reliable Class D power modules in the industry, setting a new standard in residential and commercial amplification.

Features

Our ZoneMaster models are very similar in their feature sets, differing mainly in size and number of channels.

Looking for more channels? Try the 1250. Fewer? 450 or 250.

Universal amplifier for applications from 50 to 200 watts

12 speaker connections (A and B outputs for all 6 channels)

High current for stable operation at 2 Ohms

Channel pairs are bridgeable for up to 200 watts @ 4 Ohms

Class AB input stage plus premium Class D power stage

Independent audio sensing triggers, one for each zone

3 Independent 12 volt trigger inputs, one for each zone

Looping 12 volt trigger outputs for each zone

Master 12 volt trigger input to turn all zones on-off

Speaker level input for expanding systems w/out pre out jacks

One bus input can be routed to any zone

Bus loop output jacks for passing audio to another amp

Mono mode combines L and R for single speaker applications

Separate level controls for all six channels

Detachable speaker connectors accept up to 12 gauge wire

Short circuit and overheat protection with front panel indicators

0.5 watt standby power consumption meets Energy Star & EU specs

Compact 1U chassis

1U rack mounting hardware is included in box

Specifications

Power Output

RMS, All Channels Driven (20 Hz - 20 kHz)

50 watts x 6 @ 8Ω

90 watts x 6 @ 4Ω or 2Ω

160 watts x 3 @ 8Ω (Bridged)

200 watts x 3 @ 4Ω (Bridged)

Frequency Response: 10 Hz - 60 kHz, +0/-3 dB

Total Harmonic Distortion

< 0.05% at typical listening levels

< 1.0% at full power

Interchannel Crosstalk: 70 dB at 20 kHz

Input Sensitivity:

700mv = Full output (50 Watts @ 8 Ω)

Total Gain = 29 dB (Level controls set to Maximum)

S/N Ratio: > 112 dB, input shorted, IHF A-weighted

DC Trigger Requirements: +9 Vdc to +12 Vdc, 2 mA

Audio Trigger Requirements: 2 mV Audio Signal

AC Power Requirement:

750 Watts Maximum

50 Watts Typical

20 Watts Idle (All Zones on)

8 Watts Idle (One Zone on)

0.5 Watts Standby

110-130 VAC 60 Hz or 220-255 VAC 50 Hz

Note: AC mains voltage is set only by qualified electronics technician.

Dimensions:

Width: 17.25" (437 mm)

Depth: 14.25" (362 mm)

Height, with feet: 2.5" (64 mm)

Height, without feet: 1.75" (45 mm), 1U

Weight:

Net: 12 lbs (5.5kg)

Shipping: 18 lbs (8.2kg)
