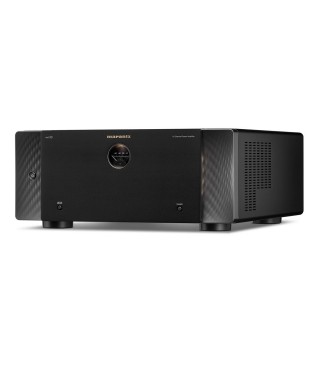

Marantz AMP 10 16 Channel Power Amplifier

Reference 16-Channel 200-Watts-Per-Channel Amplifier

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theatre. Marantz HDAM, Current Feedback Amplification, and balanced line level input.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

Features

Peerless performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Technology leader: AMP 10 is engineered using best-in-class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.

Exquisite design: A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

Ultimate Performance

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

Style

Excellence is heard and seen. AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

Customisability

Thoughtfully curated connectivity options and selectable amplifier modes let you make AMP 10 your own.

Powerful

AMP 10 gives you 16 channels of commanding power, deftly nuanced.

Specifications

Multi-Room CI

IP Control / RS232 Control / Web Control / App Control No / Yes / No / No

IR Flasher In Yes

Marantz Remote Bus Yes

DC Trigger Input / Output 1 / 1

Others

Front Display Level Meter

Firmware Update by Network / USB / RS232C No / No / Yes

Auto Power off Yes

Inputs / Outputs

Main Amplifier In Balanced & Unbalanced: 16 Ch (Exclusive Use by a Selector Switch)

Speaker Terminal: Gold Plated Screw / Regular Screw Brass Type (Same as MODEL 40n)

Number of Speaker Terminals 16

Bi-Amp Drive / BTL Drive Yes / Yes

Level Meter Yes

Chasiss Copper Plated

Specifications

Number of Power Amps 16

Power Output (8 Ohm, 1 kHz, 0.05% THD, 2 Ch Driven): Normal / BTL 200 W / 400 W

Power Output (4 Ohm, 1 kHz, 0.7% THD, 2 Ch Driven): Normal 400 W

Power Output (8 Ohm, 1 kHz, 0.7% THD, 5 Ch Driven): Normal 200 W

70% Guarantee: Normal / Bi-Amp / BTL Yes / Yes / Yes

100% Guarantee: Normal / Bi-Amp Yes / Yes

General

Metal Front Panel Yes

Pre-Programmed / Learnable / LCD Display No / No / No

Power Consumption 500 W

Power Consumption No-Sound (ECO On/Off) 140 W

Standby Consumption 0.2 W

Dimensions (W x D x H) 440 x 503 x 188 mm

Weight 19.8 kg

What's In The Box Main Unit, Quick Start Guide, AC Cord, Amp Control Cable, Remote Control Cable, SP Terminal Wrench
