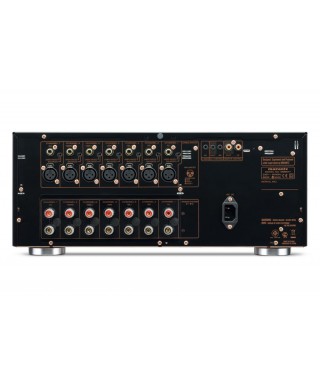

Marantz MM8077 7 Channel AV Power Amplifier

Marantz MM8077 Multichannel Main Amplifier is designed for the ultimate music and movie surround sound experience, the MM8077 7-channel power amplifier is equipped with the same amplifier technologies that are incorporated in our reference class hi-fi amplifiers, including our unique current feedback discrete power amplifier stage design, which features a high slew rate that provides a wide bandwidth for the utmost enjoyment of today’s high resolution audio formats. All output stages feature identical topology for uniform high-quality sound across all channels, and the MM8077 provides the option to choose between balanced (XLR) and unbalanced (RCA) inputs for each channel, for maximum system configuration flexibility. High current, high bandwidth discrete power transistors can handle short term musical bursts with aplomb, even into difficult low impedance speaker loads.

Features
7 x 150 Watts (8 Ω), 7 x 180 Watts (6 Ω) RMS power (20 Hz - 20 kHz)
Current feedback discrete power amplifier
High current power supply with Toroidal power transformer
Marantz reference-grade power supply filter capacitors and high speed, high current discrete power transistors
Low impedance continuous drive capability
Highest sound quality design based on pure surround philosophy
Copper plated chassis
Gold plated, high grade speaker terminals
Flasher input, DC trigger (in/out), Remote control (in/out)

Specifications
Manufacturer Marantz
Color Black
Power Amplifier Speaker Channels 7 Channel
Frequency Response 8 Hz - 100 kHz
Watts RMS per Channel (Continuous) 150 Watts
Watts RMS per Channel (6 Ω) 180 Watts
Watts RMS per Channel (8 Ω) 150 Watts
Input Sensitivity 1.2 V / 22 kΩ (High Level) | 2.4 V / 30 kΩ (Balanced High Level)
Signal-to-Noise Ratio 105 dB (High Level)
Total Harmonic Distortion (THD) 0.03 %
RCA Input 7 (Switchable)
XLR Input 7 (Switchable)
12V Trigger 1 / 1
Australian Manufacturers Warranty Australian Manufacture Warranty
Dimension
Product Dimension (H×W×D) 185 x 440 x 383.5 mm
Product Weight 18 Kg
