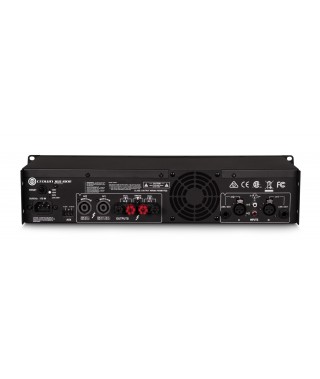

Crown XLS 1002 Power Amplifier

Meet the new XLS DriveCore™ 2 Series

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Features

Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb (5 kg)

Higher DSP capabilities: More control; has band pass filter per channel

Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues

Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power

Set sleep mode after specified time without having to press a button

Security setting disables menu buttons; menu locked/unlocked by entering combination

System reset allows factory settings to be restored

Remote power trigger

Peakx™ Limiters provide maximum output while protecting your speakers

XLR, 1/4", RCA inputs provide flexibility

Integrated PureBand™ Crossover System for better performance and control

Efficient forced-air fans prevent excessive thermal buildup

Specifications

Sensitivity 1.4Vrms

Frequency Response +0dB, -1dB

Signal to Noise > 97dB (at .775Vrms sensitivity, 6dB lower)

Intermodulation Distortion < 0.3%

Damping Factor > 200

THD < 0.5%

Crosstalk At 1kHz: > 85dB, At 20kHz: > 55dB

Dimensions 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm)

Weight 8.6 lbs (3.9 kgs)
