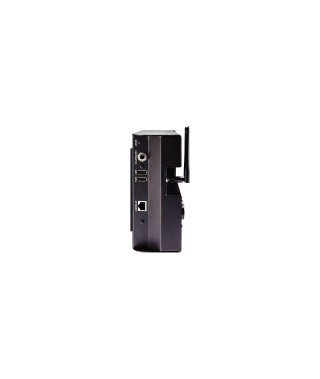

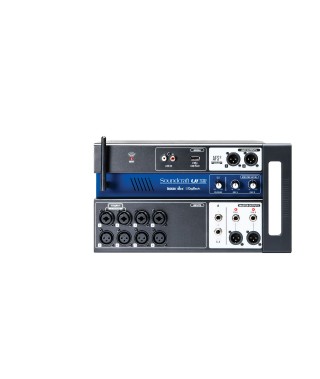

Soundcraft Ui12 Digital Mixer

The Soundcraft Ui12 is a compact digital rack mixer with built in integrated wi-fi and can connect to virtually any tablet device or laptop / PC with it's cross-platform browser-based control application.

The Ui12 features 4x XLR combo mic/line inputs, 4x XLR mic inputs, as well as a stereo RCA line input and a 2-channel USB media player. In terms of outputs, the Ui12 has 2x balanced XLR Aux outputs, 2x 1/4-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs and 2-channel USB audio playback.

In addition, the Ui12 features 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels (with built-in signal processing from dbx, DigiTech and Lexicon, including dbx AFS2 feedback suppression and DigiTech Amp Modeling) and 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. It also features three dedicated Lexicon FX busses: Reverb, Delay and Chorus.

Mixer controls include Subgroups, Mute groups and View groups, among others with the Ui12 also featuring full Show/Snapshot recallability with channel recall safes and security lockout features allowing customization of device access to specific functions and mixes if needed.

The Ui12 offers independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a rugged metal chassis for durability in live applications.

Features

Tablet/PC/Smartphone Controlled Digital Mixer

Integrated Wi-Fi

Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices

Use up to 10 control devices (tablets, phones, PCs) simultaneously

Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®

4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels

31-band Graphic EQ, Noise Gate and Compressor on all outputs

Real-Time Frequency Analyser (RTA) on inputs and outputs

3 dedicated Lexicon FX effects processors: Reverb, Delay and Chorus

Subgroups, Mute Groups, View Groups, and more mixer controls

Show/Snapshot recall with channel safes and security lockout

Specifications

Brand Soundcraft

Gross Shipping Weight - Volumetric (kgs) 8.000000

Rack Mountable Yes

Effects Yes

Connectivity USB, WiFi (2.4 GHz)

Onboard Channel Inputs 8 XLR | L&R RCA | Stereo USB

Onboard Outputs 2 Aux XLR | L+R XLR / TRS

Max Channel Mixing Capability 12

Manufacturer Model Number ui12
