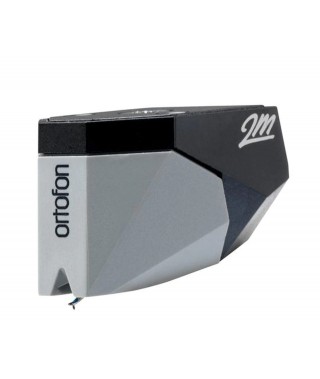

Ortofon Hi-Fi 2M 78 Moving Magnet Cartridge
5705796080063
$242
Save 10%
$269
Tax included
Features
• Improved engine provides high level of sonic accuracy
• Stylus is interchangeable with 2M Mono styli
• Spherical diamond Stylus is perfect for playback of 78 rpm shellac records
Specifications
Output voltage at 1000 Hz, 5cm/sec.: 4 mV
Channel balance at 1 kHz: -
Channel separation at 1 kHz: -
Channel separation at 15 kHz: -
Frequency range at - 3dB: 20-20.000 Hz
Frequency response: 20-20.000 Hz +3/-1 dB
Tracking ability at 315Hz at recommended tracking force* 70 µm
Compliance, dynamic, lateral: 18 µm/mN
Stylus type: Spherical
Stylus tip radius: R 65 µm
Tracking force range: 1.6-2.0 g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 0.7 kOhm
Internal inductance: 350 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Grey
2M / 2M Verso cartridge weight without screws: 7.2 g
2M PnP cartridge weight: 20 g
2M PnP MkII cartridge with integrated headshell length: 52 mm
Replacement stylus unit: 2m 78
Interchangeable with: 2M Mono
Customer ratings and reviews
Nobody has posted a review yet
in this language
# 16 other products in the same category:
The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.
The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.
