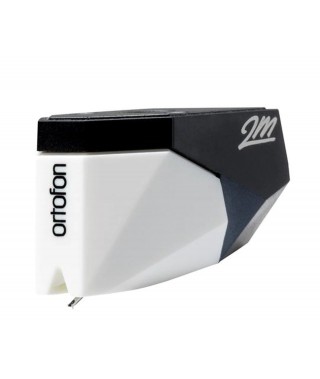

Ortofon Hi-Fi 2M Mono Moving Magnet Cartridge

5705796080056
Ask our expert.
Call (03) 85550735,Live Chat or

Ask a question about this product

Call or Email Us now for a better deal!

$656 Save 10%
$729
Tax included
*Seen it cheaper elsewhere? We do price match.
Options
Quantity

Features
• Stylus is interchangeable with 2M 78 styli

• Optimised sound reproduction and high level of sonic accuracy

• R 18µm Nude Spherical stylus that is an optimal solution for playing mono microgroove LP vinyl records



Specifications
Output voltage at 1000 Hz, 5cm/sec.:  4 mV
Channel balance at 1 kHz:  -
Channel separation at 1 kHz:  -
Channel separation at 15 kHz:  -
Frequency range at - 3dB:  20-22.000 Hz
Frequency response:  20-20.000 Hz +3/-1 dB
Tracking ability at 315Hz at recommended tracking force*    70 µm
Compliance, dynamic, lateral:  18 µm/mN
Stylus type:  Nude Spherical
Stylus tip radius:  R 18 μm
Tracking force range:  1.6-2.0 g (16-20 mN)
Tracking force, recommended:  1.8 g (18 mN)
Tracking angle:  20°
Internal impedance, DC resistance:  0.7 kOhm
Internal inductance:  350 mH
Recommended load resistance:  47 kOhm
Recommended load capacitance:  150-300 pF
Cartridge colour, body/stylus:  Black/White
2M / 2M Verso cartridge weight without screws:  7.2 g
2M PnP cartridge weight:  20 g
2M PnP MkII cartridge with integrated headshell length:  52 mm
Replacement stylus unit:  2m Mono
Interchangeable with:  2M 78
