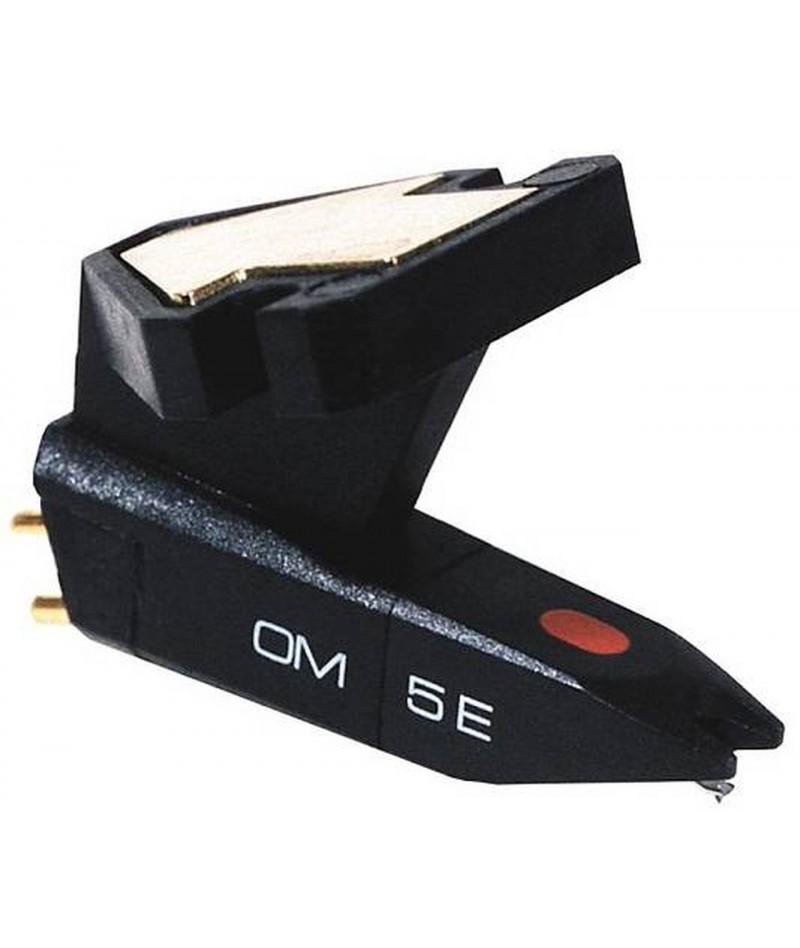

Ortofon Hi-Fi OM 5E Moving Magnet Cartridge

5705796010022
Ask our expert.
Call (03) 85550735,Live Chat or

Ask a question about this product

Call or Email Us now for a better deal!

$89 Save 10%
$99
Tax included 2-7 Workings Days
*Seen it cheaper elsewhere? We do price match.
Quantity

Features
• Ortofon moving magnet cartridge

• Replacement for faulty / worn styli on Pro-Ject turntables only



Specifications
Output voltage at 1000 Hz, 5cm/sec.:  4 mV
Channel balance at 1 kHz:  2 dB
Channel separation at 1 kHz:  22 dB
Channel separation at 15 kHz:  15 dB
Frequency range at - 3dB:  20-25.000 Hz
Frequency response:  20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force:    65 µm
Compliance, dynamic, lateral:  20 µm/mN
Stylus type:  Elliptical
Stylus tip radius:   r/R 8/18 µm
Tracking force range:  1,5-2,0 g (15-20 mN)
Tracking force, recommended:  1,75 g (17,5 mN)
Tracking angle:  20°
Internal impedance, DC resistance:  750 Ohm
Internal inductance:  450 mH
Recommended load resistance:  47 kOhm
Recommended load capacitance:  200-600 pF
Cartridge colour, body/stylus:  Black/Black
Cartridge weight:  5 g
Replacement stylus unit:  Stylus 5 E
