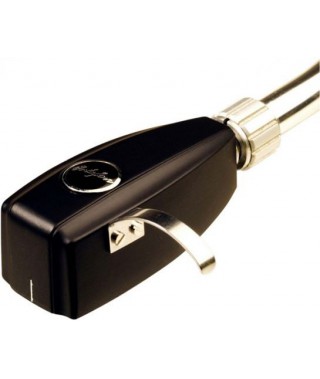

Ortofon Hi-Fi SPU Mono CG 65 DI MKII Moving Coil Cartridge
5705796240306
$1,142
Save 10%
$1,269
Tax included
2-7 Workings Days
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII.
Specifications
Output voltage at 1000 Hz, 5cm/sec. - 1.5 mV
Frequency response - 20-15.000 Hz + 3/- 1 dB
Tracking ability at 315Hz at recommended tracking force *) > 60 µm
Compliance, dynamic, lateral - 7 µm/mN
Stylus type - Spherical
Stylus tip radius - R 65 µm
Tracking force range - 4.0-5.0 g (40-50 mN)
Tracking force, recommended - 4.5 g (45 mN)
Tracking angle - 20°
Internal impedance, DC resistance 6 ohm
Recommended load impedance > 100 ohm
*) Typical value
Cartridge body material - Ground wood and resin composite
Coilwire material - High Purity Copper (OFC)
Cartridge colour - Black matte
Cartridge weight - 37 g
Customer ratings and reviews
Nobody has posted a review yet
in this language
# 16 other products in the same category:
The SPU Mono CG 65 Di MkII for the playback of early 65 µm mono and 78 rpm recordings
The Mono CG 65 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile. The CG 65 Di MkII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.
