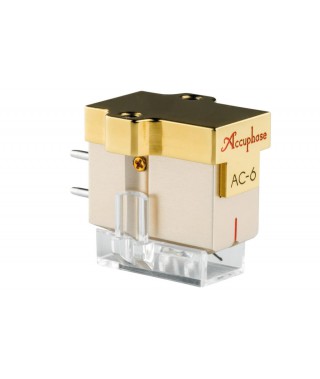

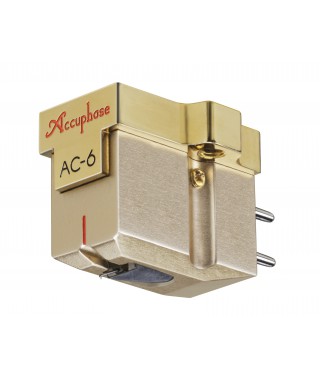

Accuphase AC-6 Moving Coil Phono Cartridge
7611230909044
The AC-6 is a new addition to the highly acclaimed Accuphase lineup of phono cartridges. This MC cartridge features latest technology in terms of materials and construction. The semi line contact stylus extracts minute vibrations that are transmitted instantaneously to the magnetic circuit by the boron cantilever with high propagation speed. The magnetic circuit is mounted on a strong titanium base, ensuring accurate conversion into a music signal. Every single aspect of the cartridge has been finely honed to deliver optimum performance, ushering the listener into the wonderful world of analog records.
Features
Base section made of stiff extruded titanium further hardened by gold ion plating
Cartridge body made of extruded aluminum with gold-colored alumite coating
Solid boron cantilever with high propagation speed faithfully transmits the stylus motion
Semi line contact stylus shape accurately traces even minute groove details
Magnetic circuit with strong grade N50 permanent neodymium magnet
Specifications
| Cartridge type: | Moving coil | Compliance: | 8 x 10-6 cm/dyne at 100 Hz (CBS STR100) |
| Frequency response: | 10 Hz to 50 kHz | ||
| Rated output voltage: | 0.4 mV (1 kHz) | Recommended load impedance | |
| Impedance: | 1.8 ohms (DCR) | Amplifier: | 100 ohms or higher |
| Recommended tracking force: | 1.9 to 2.2 g (centered on 2.0 g) | Step-up transformer: | No limitations |
| Channel balance: | Within 0.5 dB (1 kHz) | ||
| Channel separation: | 30 dB or better (1 kHz) | Stylus: | Semi line contact type (3 μm x 30 μm) |
| Cantilever: | Solid boron, 0.3 mm dia. | ||
| Supplied accessories | Core material: | Special magnetic material | |
| • Stylus cleaning brush | • Fastening screws: | Magnet: | Neodymium N50 |
| (Specially treated nylon brush) | non-magnetic titanium screws | Coil: | OFC, 50 μm dia. |
| • Stylus protector | M2.6 x 8 mm, 2 pcs. | Terminal pins: | High-gloss rhodium plated |
| • Mounting tool: Philips screwdriver | M2.6 x 10 mm, 2 pcs. | Mass: | 13.5 g |
