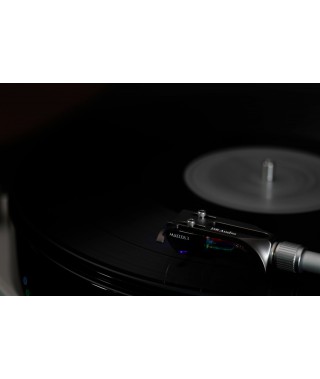

DS Audio DS Master 3 Optical Cartridge With Equalizer

Independent LED and photo-detector arrangement for the left and right channels

The new Master 3 optical cartridge system has been optimized, by implementing an independent LED and photo-detector arrangement for the left and right channels. As a result, the cartridge output voltage has dramatically increased from 40mV to 70mV. greatly improved S/N ratio compared to its stablemates, resulting in an even lower noise floor and far greater musical clarity.

The weight of the shading plate is reduced by more than 50%

The implementation of independent left and right channel LEDs allows for the positioning of the optical system to be optimized as well as necessitating the use of a new shading plate that has been significantly reduced in size compared to our earlier designs. size, the material used to produce the shading plate has changed from aluminum (as used in the second-generation cartridges) to 99.9% pure beryllium.

Diamond Cantilever

A first for DS Audio, the Master 3 cartridge features the combination of a square pillar diamond cantilever with a Micro Ridge stylus. The cartridge body structure has been designed in such a way as to promote maximum rigidity. 3 utilizes internal wiring 1.6 times thicker than used in the second-generation cartridges in order to reduce impedance.

Dual monaural circuit design with three transformers and six selectable output patterns

The DS Master3 equalizer is a dual monaural circuit design with three transformers and completely independent L-channel and R-channel circuits. outputs, and the low-frequency cutoff frequency can be selected from six different options.

Hand-made in Japan circuit board

Every component part used in our products is tested and evaluated by our expert Japanese technicians. In addition to using a specially printed circuit board, the twist-connection of the component legs is further evidence of DS Audio’s excellent attention to detail. is hand-made and quality assured by our skilled engineers.

Specifications

Signal output

Photo-electric conversion

Channel separation

27db more (1kHz)

Weight

7.9g

Output signal level

70mV more

Canti-lever

Square Pillar Diamond

Body material

Ultra duralumin

Cantilever holder material

Stainless

Needle pressure

2.0g to 2.2g (2.1g is recommended)

Stylus

Micro Ridge
