Ortofon Hi-Fi Concorde Music Black LVB 250 Moving Magnet Cartridge

Introducing Concorde Music: By music lovers, for music lovers

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Developed by music lovers, for music lovers, the Concorde music cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Easy installation, Easy upgrades

Concorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users.

All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.

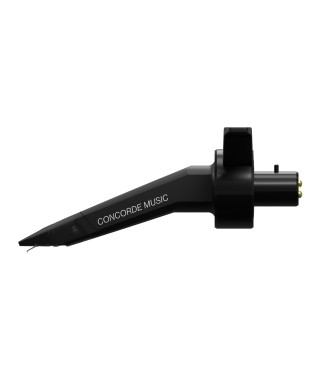

Concorde Music Black LVB 250

Experience unrivaled accuracy and fidelity with the Concorde Music Black LVB 250. The Concorde Music Black LVB 250 features a Nude Shibata stylus on a Boron cantilever making it the most premium Ortofon Moving Magnet cartridge on the market.

Specifications

Channel balance at 1 kHz

1 dB

Output voltage at 1 kHz, 5cm/sec

6mV

Channel seperation at 1 kHz

26 dB

Channel seperation at 15 kHz

20 dB

Frequency response 20 Hz - 20 kHz

+2 / 0 dB

Tracking ability at 315Hz at recommended tracking force

80 µm

Compliance, dynamic, lateral

15 µm/mN

Stylus type

Shibata diamond on Boron cantilever

Stylus tip radius

r/R 6/50 µm

Tracking force, recommended

1.8 g

Tracking angle

20°

Internal impedance, DC resistance

1.27 kΩ

Cartridge colour

Black/Black

Cartridge weight

18 g

Recommended load resistance

47 kΩ

Internal inductance

815 mH

Recommended load capacitance

150-300 pF
