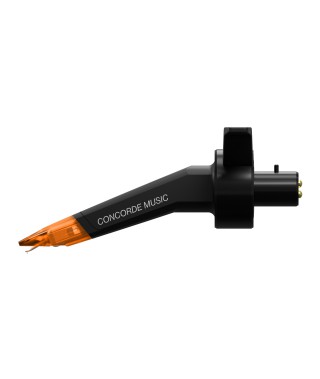

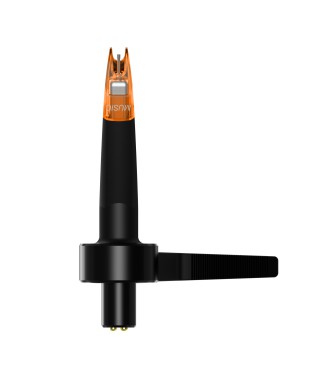

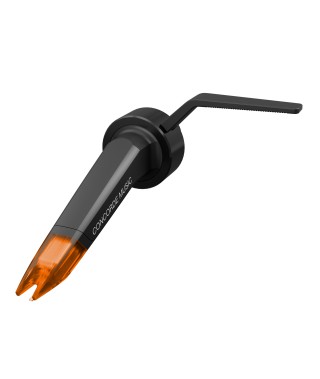

Ortofon Hi-Fi Concorde Music Bronze Moving Magnet Cartridge

Introducing Concorde Music: By music lovers, for music lovers

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Developed by music lovers, for music lovers, the Concorde music cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Easy installation, Easy upgrades

Concorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users.

All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.

Concorde Music Bronze

The Concorde Music Bronze features a Nude Fine Line stylus on Aluminium cantilever, offers an upgrade from the Concorde Music Blue. Enjoy seamless upgrades throughout the series, from your Concorde Music Bronze to the Concorde Music Black LVB 250, simply by replacing the stylus. Experience insightful, high-resolution sound reproduction!

Specifications

Channel balance at 1 kHz

1 dB

Output voltage at 1 kHz, 5cm/sec

6mV

Channel seperation at 1 kHz

26 dB

Channel seperation at 15 kHz

17 dB

Frequency response 20 Hz - 20 kHz

+2 / 0 dB

Tracking ability at 315Hz at recommended tracking force

80 µm

Compliance, dynamic, lateral

15 µm/mN

Stylus type

Nude Fine Line diamond on Aluminium cantilever

Stylus tip radius

r/R 8/40 µm

Tracking force, recommended

1.8 g

Tracking angle

20°

Internal impedance, DC resistance

1.27 kΩ

Cartridge colour

Black/Bronze

Cartridge weight

18 g

Recommended load resistance

47 kΩ

Internal inductance

815 mH

Recommended load capacitance

150-300 pF
