Ortofon Hi-Fi Concorde Music Red Moving Magnet Cartridge

Introducing Concorde Music: By music lovers, for music lovers

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Developed by music lovers, for music lovers, the Concorde music cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Easy installation, Easy upgrades

Concorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users.

All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.

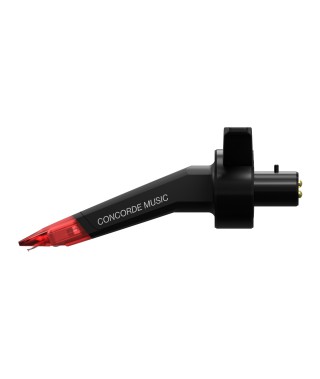

Concorde Music Red

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.

Specifications

Channel balance at 1 kHz

1.5 dB

Output voltage at 1 kHz, 5cm/sec

6mV

Channel seperation at 1 kHz

22 dB

Channel seperation at 15 kHz

15 dB

Frequency response 20 Hz - 20 kHz

+3 / -1 dB

Tracking ability at 315Hz at recommended tracking force

80 µm

Compliance, dynamic, lateral

15 µm/mN

Stylus type

Elliptical diamond on Aluminium cantilever

Stylus tip radius

r/R 8/18 µm

Tracking force, recommended

1.8 g

Tracking angle

20°

Internal impedance, DC resistance

1.27 kΩ

Cartridge colour

Black/Red

Cartridge weight

18 g

Recommended load resistance

47 kΩ

Internal inductance

815 mH

Recommended load capacitance

150-300 pF
