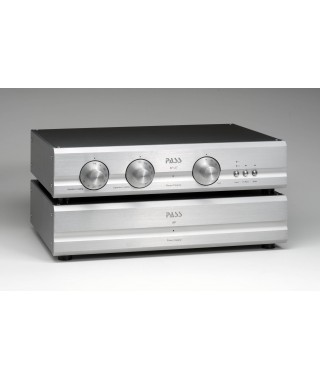

Pass Labs XP-27 Phonostage Preamplifier

Ask our expert.
Call (03) 85550735,Live Chat or

Ask a question about this product

Call or Email Us now for a better deal!

$23,995
Tax included 2-7 Workings Days
*Seen it cheaper elsewhere? We do price match.
Quantity

The power supply is dual mono with two transformers with lower radiated and mechanical noise. Noise is the most prominent part of THD+N at low levels, so by lowering noise we get better resolution and dynamics.The XP-27 input and gain circuitry are similar to that found in the Xs Phono. This means switching and loading is done at higher signal levels, minimizing noise and improving low level performance.



Specifications

Gain = 53dB, 66dB, 76dB

RIAA response = +/- 0.1 dB 20-20KHz

Distortion = < 0.005 % @ 1mV MC input / <0.002 % @ 10mV MM input

Max out = 22V RMS

Output Impedance = 200 ohms

Input Impedance = 100pF – 750pF on any input  /  30 ohm – 47K ohm on any input

Unweighted Noise = -93 dB ref 10mV (MM)  /  -85 dB ref 1mV (MC)

Power consumption = 50 watts

Dimensions = 17”w x 12.5”d x 4”h each chassis

Weight = 55LBS
