The Transrotor PHONO Studio pre-amplifier brings detail of analog vinyl to full harmonious development. Signals from cartridges are fine and detailed pre-amplified. This is done with impressive dynamics and sonic quality.

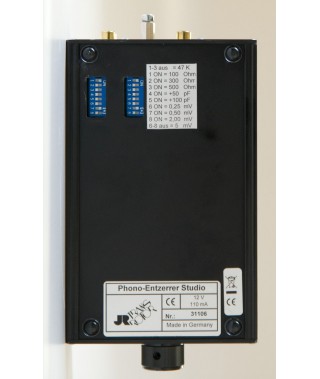

Switches mounted directly onto the circuit board allow loss-less adjustment of your MM or MC cartridge. The separated left and right channed circuit board is designed to suppress resonance, firmly connected with the massive aluminum housing. Individually selected, high quality audio components result in a superior channel equality and an excellent signal to noise ratio.
The separate power supply provides the Transrotor PHONO Studio with a constant, stabilized DC voltage.The pre-amp itself is another two-stage filtration and stabilization of the DC current.
Specifications
Gain: for MC and MM 38-64 dB in 16 steps
MM input resistance: 47 k ohms
MC input resistance: 100-1000 ohms in 16 steps
Input capacitance MM: 47-850 pF in 16 steps
THD + N: 0.03%
Crosstalk: -62 dB
Signal to Noise Ratio: 68dBA at 65dB gain,-80dB at 40dB gain
Frequency response: 20Hz - 25KHz + - 0.5dB (RIAA equalized)
Dimensions: 17.6cm x 17cm x 7cm (wxdxh)
