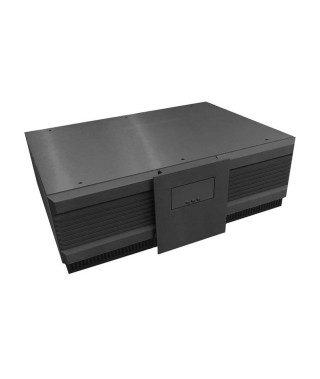

IsoTek EVO3 Nova Power Conditioner

Features
High current transient ability through the four dedicated high current outlets (16Amps)

Suitable for all audio or AV components

Compact and elegant rack width design

Upgrades your complete audio system

Supplied with IsoTek’s award winning Premier power cable

UK, EU, US, Australian, Swiss and South African outlets

Design
IsoTek’s  newly designed EVO3 Nova is a twelve-way full system mains power  conditioner comprising of four high-current outlets, featuring IsoTek’s  unique Direct-Coupled© technology, a system capable of delivering 3680W  of continuous power, ideal for power amplifiers, monoblock amplifiers,  subwoofers and active loudspeakers. This circuit provides optimal  high-current low impedance filtering while fully maintaining transient  and dynamic performance. The eight medium-current outlets feature  IsoTek’s unique Adaptive Gating© system which auto-senses the power  consumption of the connected load and adjusts to provide an ideal  environment for filtration. This enables the use of a broader range of  electronic components from all categories of traditional two-channel and  home cinema making the Nova idea for large audio or audio-visual  installations.

The Nova also features KERP©  (Kirchoff’s Equal Resistance Path), a technology developed specifically  for IsoTek’s EVO3 generation of products. KERP ensures equal resistance  and power delivery to all outlets, providing a pure, coherent signal  path throughout the unit.

Furthermore, The EVO3 Nova will not  only filter out incoming common mode or differential mode mains noise,  it will also stop cross-contamination of differential mode noise between  connected audio and AV components. This is due to the unique circuit  and independent filtration networks. No two outlets are connected  directly, every single outlet has its dedicated filter network, each of  which functions independently, effectively operating as twelve power  conditioners in one box. In addition, a massive 135,000A of  instantaneous protection safeguards against the impact of power spikes  and surges via IsoTek’s unique sequential and repeatable protection  system. The Nova uses a solid silver-plated OCC (Ohno Continuous Cast)  Copper internal wiring cable and includes IsoTek’s VAD (Virtual Air  Dielectric) technology.

Specifications
Number of outlets 12
Type of outlets UK, EU, US, CH, AU & ZA
Display Voltage / THD / off
Mains inlet 20A IEC C20
Mains voltage 100-240V / 50-60Hz
High Current  (Continous) 3,680W
Medium Current 2,300W
Maximum current 20A HRC
Total wattage 3,680W
Dimensions 440 x 160 x 370mm (W x H x D)
Weight 15Kg
